Male Jic X Male Bspt 9011-05-04

Specifications

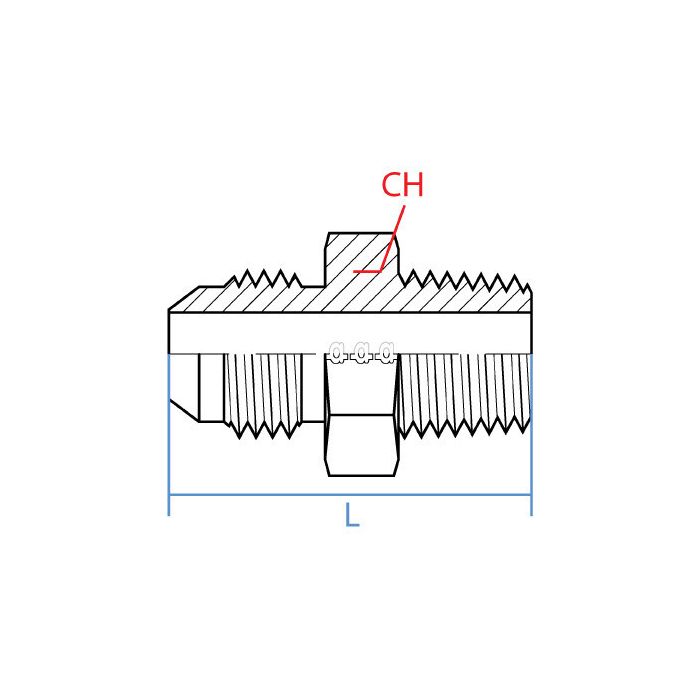

CH Width 14mm	L Length 40mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1/2 - 20 UNF	Side 1 Gender M	Side 1 Size 5/16"	Side 1 Type Jic	Side 2 Callout R 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9011-05-04	Product Weight 0.12 lbs

Product Questions & Answers 3

Product Questions & Answers

What's the deal with the different sized ends on this thing?

Question by: Ray D on Jan 23, 2026, 7:18 PM

It's made with a JIC (Joint Industry Council) end on one side, which is 5/16" size and 1/2 - 20 UNF callout, and a Bspt (British Standard Pipe Tapered) end on the other side, which is 1/4" size and R 1/4 - 19 callout. That lets you connect different kinds of hydraulic fittings together.

Answer by: Customer Support on Jan 25, 2026, 6:52 AM

got a hose end that’s 1/2-20 UNF JIC, will this adapter match up to it?

Question by: Peggy G on Nov 4, 2025, 9:06 AM

On the JIC side, it’s a male 5/16 inch with a 1/2 - 20 UNF thread callout, so it matches a 1/2-20 UNF JIC connection on that end.

Answer by: Customer Support on Nov 5, 2025, 1:58 PM

Got a line running R 1/4-19 BSPT on one end and JIC on the other, this the right adapter to tie them together?

Question by: Dwayne A on Nov 4, 2025, 3:10 PM

That's what this one's built for. One side is male JIC with a 1/2-20 UNF thread at 5/16" size, and the other side is male BSPT at R 1/4-19 with a 1/4" size. Steel construction, straight profile, so it'll give you a solid bridge between those two thread types without any funny angles or adapters stacked on adapters.

Answer by: Customer Support on Nov 6, 2025, 6:49 AM
