Male Jic X Male Bspt

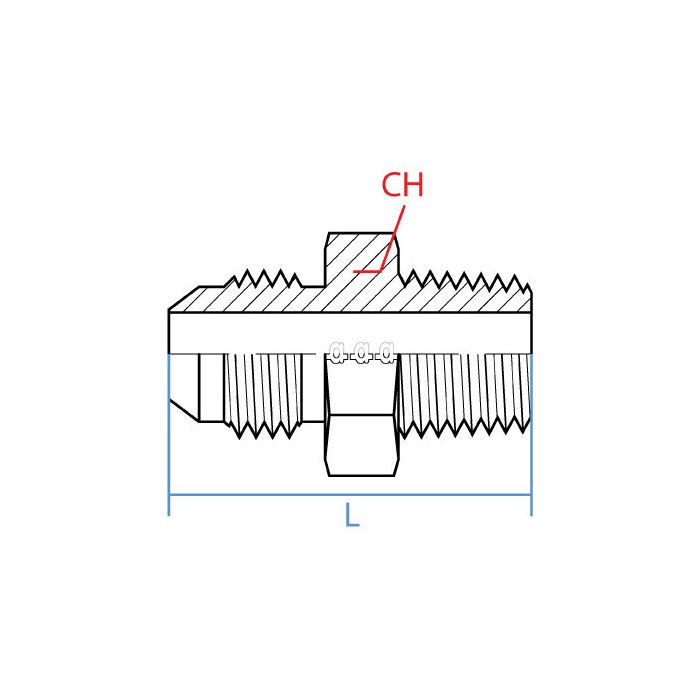

CH Width 14mm	L Length 32.2mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1/2 - 20 UNF	Side 1 Gender M	Side 1 Size 5/16"	Side 1 Type Jic	Side 2 Callout R 1/8 - 28	Side 2 Gender M	Side 2 Size 1/8"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9011-05-02	Product Weight 0.10 lbs

Product Questions & Answers 1

Product Questions & Answers

got a line running R 1/8 BSPT on one end and JIC on the other, this the right part to bridge them together?

Question by: Freddie H on Nov 17, 2025, 12:08 PM

Yeah, that's exactly what this adapter is built for. One end is a 1/2-20 UNF male JIC, the other is an R 1/8-28 male BSPT. Both sides are male, so you'd need female fittings on the components you're connecting it to. Steel construction, straight configuration, and it comes in at 32.2mm long with a 14mm wrench width. Fits tight spaces reasonably well for what it is.

Answer by: Customer Support on Nov 19, 2025, 8:41 AM
