Male Jic X Male Bspt 9011-04-06

Specifications

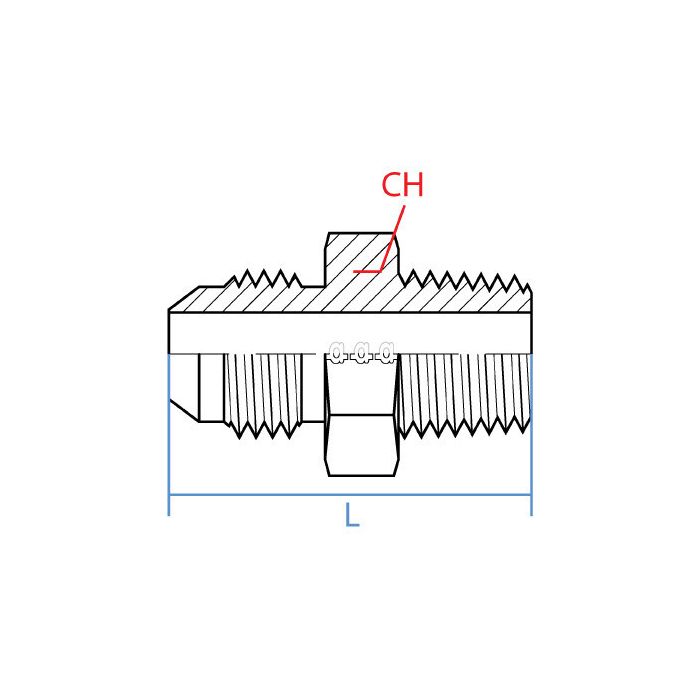

CH Width 17.5mm	L Length 39.2mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout R 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9011-04-06	Product Weight 0.10 lbs

Product Questions & Answers 3

Product Questions & Answers

got a hose end that’s 7/16-20 UNF JIC male, and the port i need is R 3/8-19 BSPT. is this the right little adapter?

Question by: Eddie E on May 19, 2025, 3:16 PM

For joining those two thread types directly, it’s a straight steel adapter with a 1/4 inch Male JIC on one side (7/16-20 UNF) and a 3/8 inch Male BSPT on the other (R 3/8-19).

Answer by: Customer Support on May 21, 2025, 6:29 AM

Got a machine that's got a JIC port on the hydraulic line and a BSPT fitting on the component side, does this adapter go straight between the two without needing anything else in the middle?

Question by: Donna W on Oct 17, 2025, 9:25 PM

That's what it's built for. One end is a 1/4" Male JIC running a 7/16-20 UNF thread, and the other side is a 3/8" Male BSPT at R 3/8-19. No intermediate fittings, no extra hardware. It bridges those two thread standards directly in a single straight piece, which keeps things clean and cuts down on potential leak points.

Answer by: Customer Support on Oct 19, 2025, 1:32 PM

Will this adapter hold up okay in a hydraulic system running around 2000 psi?

Question by: Dwayne W on Apr 5, 2026, 3:48 PM

This adapter is made from steel and intended for hydraulic systems, so it should be suitable for systems around 2000 psi.

Answer by: Customer Support on Apr 7, 2026, 6:33 AM
