Male Jic X Male Bspt

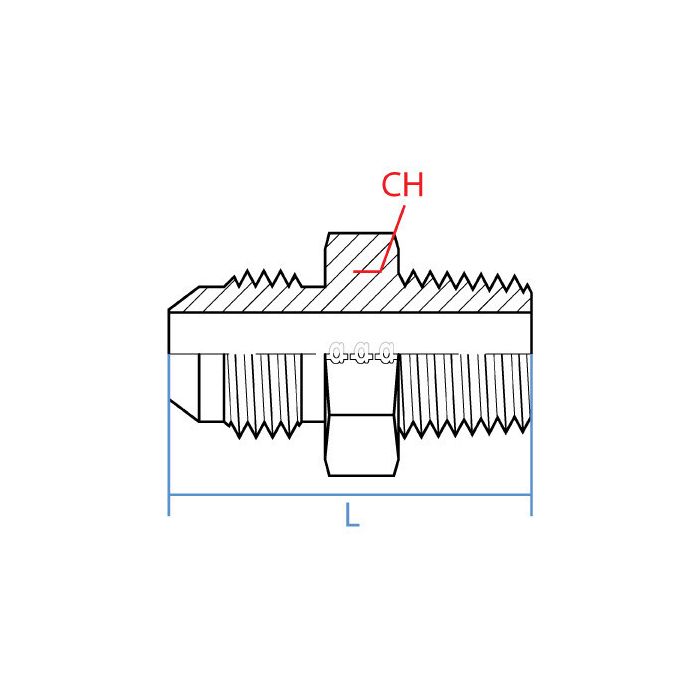

CH Width 16mm	L Length 36.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout R 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspt	Alternate Part Numbers Alternate Part Number MI-02116184, Alternate Part Number MINO-03671J02526	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9011-04-04	Product Weight 0.10 lbs

Product Questions & Answers 1

Product Questions & Answers

What thread types are on each end of this adapter, and are they both the same size?

Question by: Harvey T on Aug 4, 2025, 6:07 PM

Both ends are 1/4 inch, but the thread types differ. One side is a 7/16-20 UNF male JIC, and the other is an R 1/4-19 male BSPT. So if you're needing to tie a JIC line into a BSPT port, this straight adapter handles that conversion in one piece without any extra fittings in between.

Answer by: Customer Support on Aug 6, 2025, 6:55 AM
