Bspt X Bspt Nipple

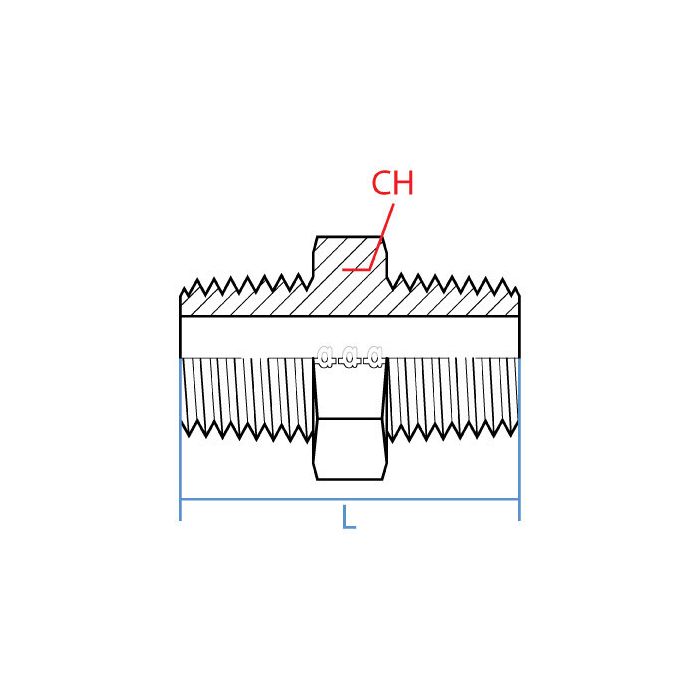

CH Width 12mm	L Length 27.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout R 1/8 - 28	Side 1 Gender M	Side 1 Size 1/8"	Side 1 Type Bspt	Side 2 Callout R 1/8 - 28	Side 2 Gender M	Side 2 Size 1/8"	Side 2 Type Bspt	Alternate Part Numbers Alternate Part Number C1GH72	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9010-02-02	Product Weight 0.03 lbs

Product Questions & Answers 2

Product Questions & Answers

got a spot on a small hydraulic unit where two lines need to join up real tight, would a 1/8" BSPT male-to-male nipple work for that kind of connection?

Question by: Clint J on Feb 14, 2026, 9:40 PM

For tight-space installations, this fitting is a solid match. Both ends are R 1/8 - 28 BSPT male thread, and the overall length is only 27.1mm with a 12mm width, so it fits into confined areas without much fuss. Steel construction holds up well in demanding hydraulic environments, and the straight configuration keeps the connection simple and direct.

Answer by: Customer Support on Feb 16, 2026, 6:08 AM

got a tight spot on a manifold, how long is this little nipple end to end?

Question by: Marvin K on Mar 9, 2026, 1:20 PM

At 27.1 mm long with a 12 mm wrench width, it’s a compact straight nipple that fits well where space is limited.

Answer by: Customer Support on Mar 11, 2026, 6:30 AM
