Male Jic X Fem. Bspp Fixed 9009-24-24

Specifications

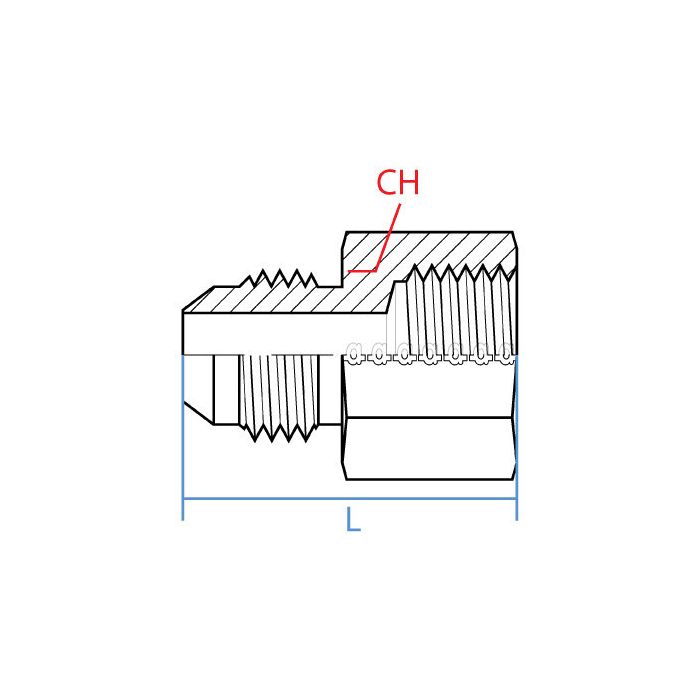

CH Width 57.5mm	L Length 67.3mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-7/8 - 12 UN	Side 1 Gender M	Side 1 Size 1-1/2"	Side 1 Type Jic	Side 2 Callout G 1-1/2 - 11	Side 2 Gender F	Side 2 Size 1-1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9009-24-24	Product Weight 0.99 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to hook up a jic hose end to a bspp port. are the threads on this one 1-7/8-12 UN on the male side and G 1-1/2-11 on the female side?

Question by: Troy E on Apr 12, 2025, 12:44 PM

On this adapter, side 1 is a male JIC thread with a 1-7/8 - 12 UN callout in a 1-1/2 inch size, and side 2 is a female BSPP thread with a G 1-1/2 - 11 callout, also 1-1/2 inch size.

Answer by: Customer Support on Apr 14, 2025, 7:52 AM

What kind of steel is this adapter made from?

Question by: Vince E on May 24, 2025, 9:27 AM

Constructed from durable steel, this adapter is designed to provide excellent strength and resistance to wear, making it suitable for high-pressure systems.

Answer by: Customer Support on May 25, 2025, 6:00 PM

Got a system running BSPP fittings on the hydraulic lines, but the pump side came threaded JIC. This adapter gonna bridge that gap without a bunch of extra pieces in the line?

Question by: Terry T on May 14, 2025, 9:21 PM

Yeah, that's exactly the kind of situation this fitting handles. One end is a 1-7/8-12 UN male JIC thread, the other is a G 1-1/2-11 female BSPP, both sized at 1-1/2 inches. Straight through, no funny angles or extra couplings needed. Steel construction keeps it solid under load, and the fixed connection type means once it's made up, it stays put without rotating or shifting on you.

Answer by: Customer Support on May 16, 2025, 6:51 AM
