Male Jic X Fem. Bspp Fixed 9009-08-08

Specifications

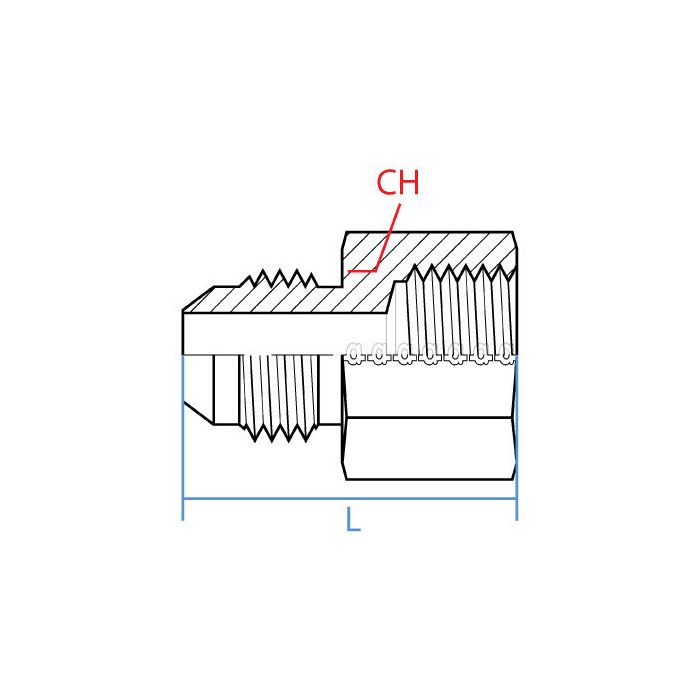

CH Width 27mm	L Length 43.2mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout G 1/2 - 14	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9009-08-08	Product Weight 0.20 lbs

Product Questions & Answers 3

Product Questions & Answers

got a hydraulic line running JIC on one end and BSPP on the other, this the right piece to bridge that gap?

Question by: Billy C on Oct 12, 2025, 10:32 AM

For a 3/4-16 UNF male JIC side connecting to a G 1/2-14 female BSPP port, yes, that's exactly what this adapter is built to handle. Both sides are 1/2" nominal, so the sizing lines up. Steel construction keeps it solid under the kind of pressure and vibration you'd expect in a working hydraulic system, and the straight profile makes it straightforward to thread in without needing extra clearance around it.

Answer by: Customer Support on Oct 14, 2025, 6:44 AM

Will this fitting work with a standard JIC flared connection?

Question by: Keith W on Nov 29, 2025, 1:30 PM

Yes, this adapter features a 3/4 - 16 UNF male JIC fitting, which is a standard flared connection. It's designed to mate with a corresponding female JIC flare.

Answer by: Customer Support on Nov 30, 2025, 8:19 PM

got a hose end that’s 3/4-16 UNF JIC male and the port on the other side is G 1/2-14 BSPP female. is this the right fixed straight adapter to marry those up

Question by: Warren R on May 14, 2025, 1:10 PM

Match the threads on both ends and it lines up: Side 1 is a 3/4 - 16 UNF male JIC, and Side 2 is a G 1/2 - 14 female BSPP. It is a straight, fixed steel adapter with both ends called out as 1/2 inch size.

Answer by: Customer Support on May 16, 2025, 12:36 PM
