Male Jic X Fem. Bspp Fixed

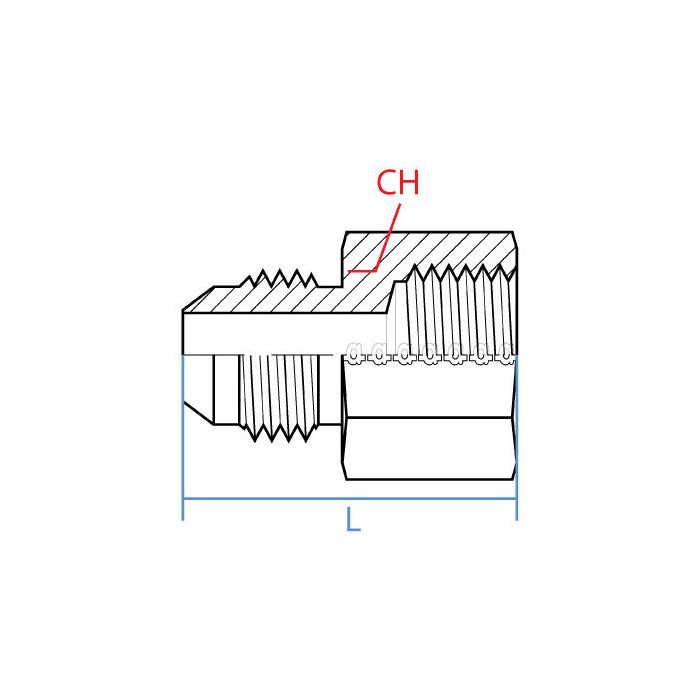

CH Width 19mm	L Length 32.4mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout G 1/4 - 19	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9009-04-04	Product Weight 0.08 lbs

Product Questions & Answers 1

Product Questions & Answers

trying to hook a JIC hose up to a BSPP port, is this the right adapter?

Question by: Troy F on Aug 3, 2025, 4:07 PM

For a straight, fixed hookup between those two thread styles, it matches a 1/4 inch male JIC (7/16-20 UNF, 37 degree flare) on one side and a 1/4 inch female BSPP (G 1/4-19 parallel) on the other.

Answer by: Customer Support on Aug 5, 2025, 6:27 AM
