Bspt X Npt Nipple

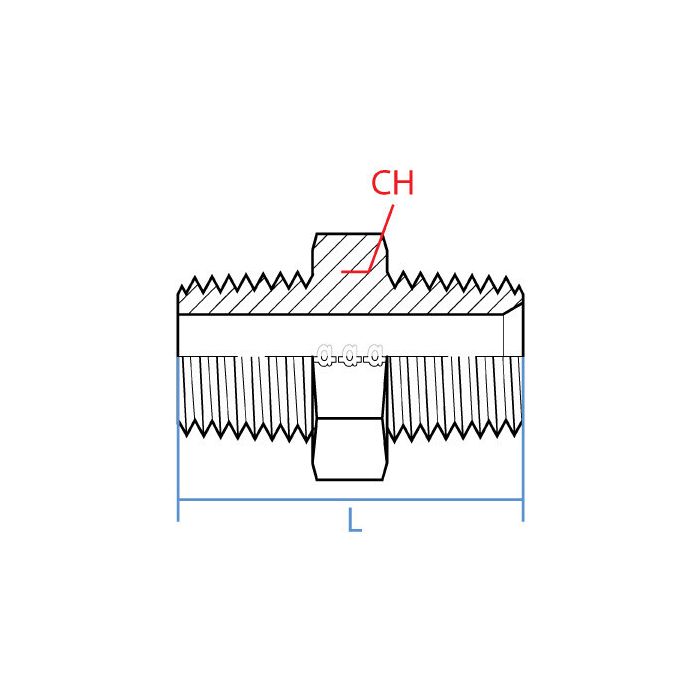

CH Width 17.5mm	L Length 38mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout R 3/8 - 19	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Bspt	Side 2 Callout 3/8 - 18 NPTF	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9008-06-06	Product Weight 0.10 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fitting work to connect something with a BSPT thread to something with an NPT thread?

Question by: Larry Y on Jan 16, 2026, 5:36 PM

Yes, this steel nipple is designed to adapt between BSPT and NPT thread types. It has a 3/8" male BSPT connection on one side and a 3/8" male NPT connection on the other.

Answer by: Customer Support on Jan 18, 2026, 7:29 AM

Got a piece of equipment running BSPT fittings and need to tie into an NPT line, this the right part to make that happen?

Question by: Gary R on Oct 24, 2025, 2:59 PM

That's what this fitting is built for. One end is 3/8" male BSPT (R 3/8 - 19) and the other is 3/8" male NPT (3/8 - 18 NPTF), so it bridges those two thread standards in a straight-through configuration. Both sides are the same size, so there's no reduction happening. Steel construction, 38mm overall length, 17.5mm across the flats. If your application calls for a direct male-to-male adapter between those two thread types at 3/8", this does the job.

Answer by: Customer Support on Oct 26, 2025, 10:07 AM
