Bspt X Npt Nipple 9008-02-02

Specifications

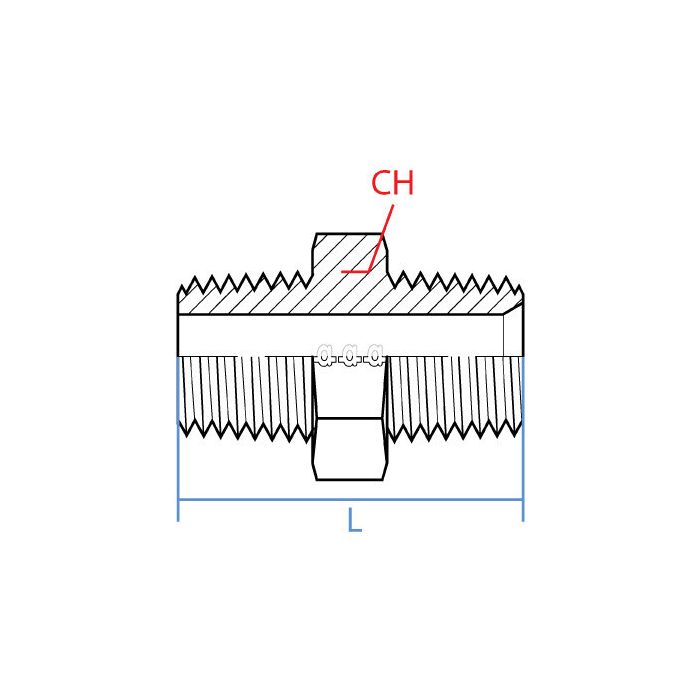

CH Width 11mm	L Length 27.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout R 1/8 - 28	Side 1 Gender M	Side 1 Size 1/8"	Side 1 Type Bspt	Side 2 Callout 1/8 - 27 NPTF	Side 2 Gender M	Side 2 Size 1/8"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9008-02-02	Product Weight 0.05 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a piece of equipment running BSPT fittings on one port and NPT on another, this little nipple bridge the gap between them?

Question by: Pete G on Sep 23, 2025, 8:55 AM

Steel construction, male threads on both ends, one side R 1/8-28 BSPT and the other 1/8-27 NPTF. That's exactly the kind of mixed-thread situation this fitting is built for. Both sides are 1/8" size, so as long as your ports match up to those specs, you've got yourself a solid mechanical connection between the two thread standards.

Answer by: Customer Support on Sep 24, 2025, 10:02 AM

got a port that’s R 1/8 - 28 on one side and 1/8 - 27 NPTF on the other. is this the right little nipple to tie those together?

Question by: Dean W on Jan 5, 2026, 12:53 PM

Built for exactly that kind of mix, it is a straight steel nipple with a male BSPT R 1/8 - 28 thread on one end and a male 1/8 - 27 NPTF thread on the other, both in 1/8 inch size.

Answer by: Customer Support on Jan 7, 2026, 10:41 AM

What kind of steel is this nipple made out of? Just need somethin' that'll hold up.

Question by: Harold J on Jul 13, 2025, 2:22 PM

Constructed from durable steel, this nipple adapter is built for reliable connections in industrial hydraulic systems, so it should provide the durability you're looking for.

Answer by: Customer Support on Jul 14, 2025, 9:39 PM
