Male Bspp X Male Npt Nipple 9007-16-20

Specifications

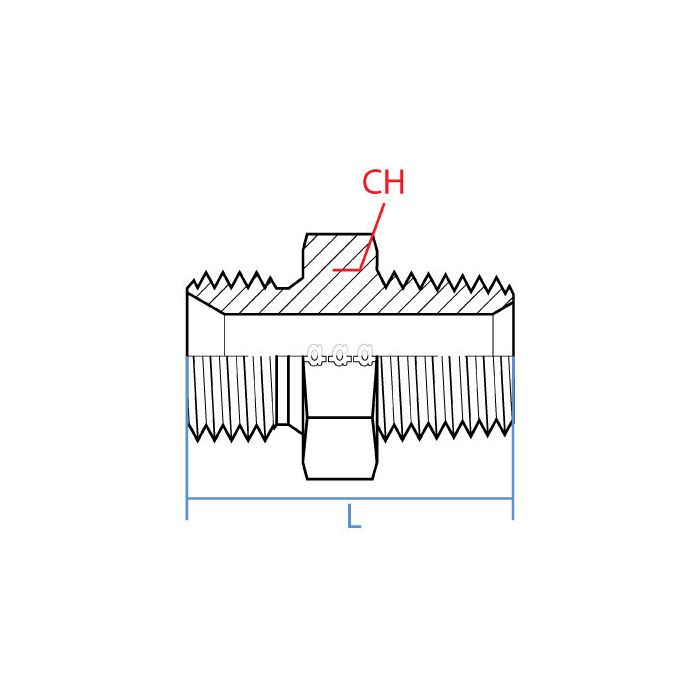

CH Width 44.5mm	L Length 58.3mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1 - 11	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Bspp	Side 2 Callout 1-1/4 - 11.5 NPTF	Side 2 Gender M	Side 2 Size 1-1/4"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9007-16-20	Product Weight 0.65 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a piece of equipment running BSPP fittings on the pump side and NPT ports on the manifold block, would this nipple tie them together direct without needing an adapter in between?

Question by: Peggy R on Oct 22, 2025, 9:43 PM

That's exactly what this part handles. One end is a G 1 - 11 BSPP male thread, the other is a 1-1/4 - 11.5 NPTF male thread, so it bridges those two standards in a single straight piece. No additional adapter needed in between. The BSPP side is a 1 inch connection and the NPT side steps up to 1-1/4 inch, so just confirm those sizes match your ports before ordering.

Answer by: Customer Support on Oct 24, 2025, 7:51 PM

i’ve got a G 1 BSPP port on one side and a 1-1/4 NPTF on the other. is this the straight nipple that ties those two together?

Question by: Jerry W on Dec 20, 2025, 2:27 PM

Built for exactly that mix, it has a male G 1 - 11 BSPP (parallel) thread on one end and a male 1-1/4 - 11.5 NPTF thread on the other, in a straight steel nipple.

Answer by: Customer Support on Dec 21, 2025, 6:09 PM

What's the wrench size on this nipple? Gotta make sure I have the right tools.

Question by: Scott M on Oct 1, 2025, 7:04 AM

The wrench width on this fitting is 44.5mm, so you'll need a wrench that fits that size.

Answer by: Customer Support on Oct 2, 2025, 7:47 AM
