Male Bspp X Male Npt Nipple 9007-16-08

Specifications

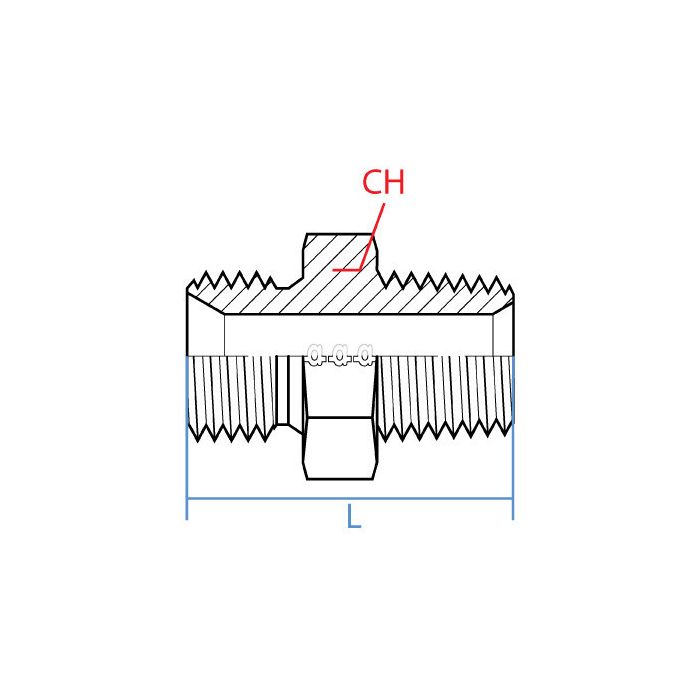

CH Width 41mm	L Length 49.4mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1 - 11	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Bspp	Side 2 Callout 1/2 - 14 NPTF	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9007-16-08	Product Weight 0.40 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this fitting work to connect a 1" BSPP pump to a 1/2" NPT gauge?

Question by: Curt C on Mar 22, 2026, 1:26 PM

Yes, this straight nipple fitting is designed to adapt between those sizes. One side is a 1" male BSPP, and the other is a 1/2" male NPT.

Answer by: Customer Support on Mar 23, 2026, 4:26 PM

Got a metric BSPP port on a piece of equipment running a 1 inch line, what size NPT does this fitting step down to on the other end?

Question by: Vince P on Oct 29, 2025, 8:49 PM

The NPT side comes out at 1/2 inch, so you're going from a full 1 inch BSPP male connection down to a 1/2-14 NPTF male thread on the other end. Worth knowing before you grab it that both sides are male, so you'll need female ports or female couplings on both ends of the install.

Answer by: Customer Support on Oct 31, 2025, 8:12 AM

trying to hook a BSPP port up to an NPT line, is this the straight adapter for that?

Question by: Melvin A on Sep 18, 2025, 8:26 AM

For adapting between those two thread types, it’s a straight steel nipple with a 1 inch male BSPP (G 1-11) on one end and a 1/2 inch male NPTF (1/2-14) on the other.

Answer by: Customer Support on Sep 19, 2025, 8:56 AM
