Male Bspp X Male Npt Nipple

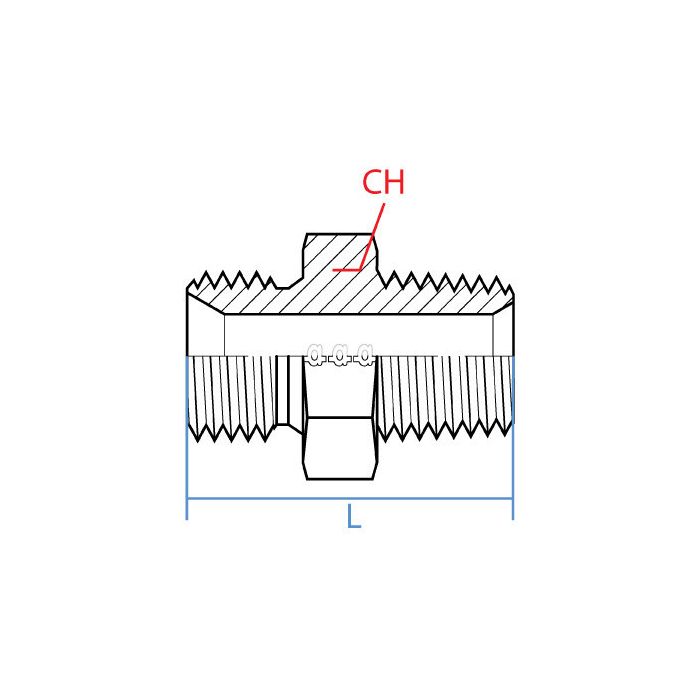

CH Width 17mm	L Length 28.3mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1/4 - 19	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Bspp	Side 2 Callout 1/8 - 27 NPTF	Side 2 Gender M	Side 2 Size 1/8"	Side 2 Type Npt	Alternate Part Numbers Alternate Part Number MI-02206330, Alternate Part Number MINO-03671X85013	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9007-04-02	Product Weight 0.24 lbs

Product Questions & Answers

Trying to hook up a BSPP port to an NPT line, is this the little straight nipple that goes from G 1/4-19 over to 1/8-27 NPTF?

Question by: Gary T on Oct 18, 2025, 2:40 PM

For that kind of thread conversion, it matches up as a male G 1/4-19 BSPP on one end and a male 1/8-27 NPTF on the other, in a straight steel nipple.

Answer by: Customer Support on Oct 19, 2025, 7:55 PM

Will this fitting work with both BSPP and NPT threads?

Question by: Hank K on Jun 12, 2025, 6:35 AM

It's designed with a G 1/4 - 19 BSPP thread on one side and a 1/8 - 27 NPTF thread on the other, so it's made to connect those specific thread types.

Answer by: Customer Support on Jun 13, 2025, 4:49 PM
