Male Bspp X Male Npt Nipple 9007-02-02

Specifications

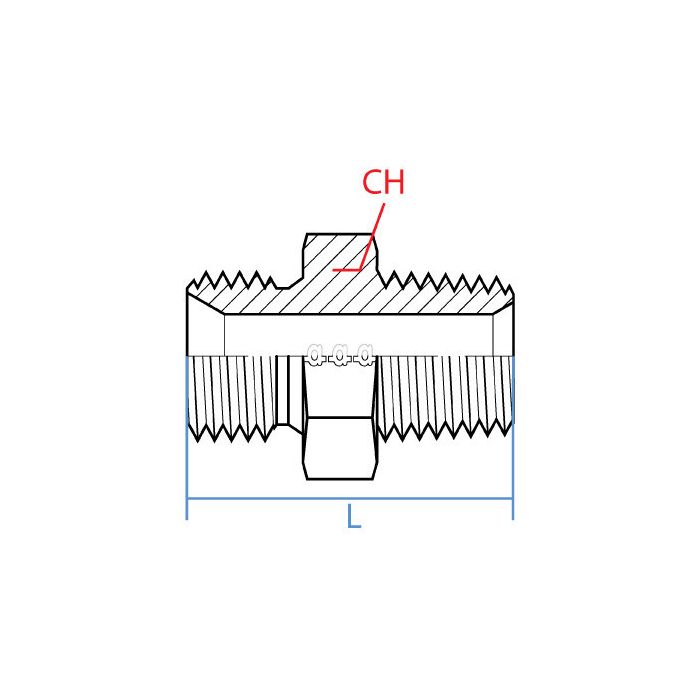

CH Width 14mm	L Length 28.3mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1/8 - 28	Side 1 Gender M	Side 1 Size 1/8"	Side 1 Type Bspp	Side 2 Callout 1/8 - 27 NPTF	Side 2 Gender M	Side 2 Size 1/8"	Side 2 Type Npt	Alternate Part Numbers Alternate Part Number C1JD67, Alternate Part Number MI-02206328, Alternate Part Number MINO-03671X85011	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9007-02-02	Product Weight 0.03 lbs

Product Questions & Answers 3

Product Questions & Answers

So this is just a straight shot fitting, right? Ain't got no kind of angle to it?

Question by: Terry T on Mar 28, 2026, 8:09 PM

That's right, this Adaptall fitting is straight-shaped.

Answer by: Customer Support on Mar 30, 2026, 7:44 AM

got a pump with a G 1/8-28 port and i need to tie into a 1/8-27 NPTF line. is this the right little nipple for that?

Question by: Melvin B on Jan 11, 2026, 4:01 PM

For that thread matchup, yes. One end is male G 1/8 - 28 BSPP and the other end is male 1/8 - 27 NPTF, so it is meant to bridge those two standards in a straight, non-adjustable nipple.

Answer by: Customer Support on Jan 13, 2026, 8:23 AM

Got a piece of equipment here with a BSPP port that I need to tie into a 1/8 NPT line. This nipple gonna work for that?

Question by: Floyd E on Mar 31, 2026, 1:30 PM

That's what this fitting is built for. One end runs a male G 1/8-28 BSPP thread and the other end is male 1/8-27 NPTF, so it bridges those two thread standards in a single straight piece. Both sides are 1/8 inch, and the whole thing is machined from steel, so it holds up well in working industrial conditions. No sealant or extra hardware is called out as required for installation either.

Answer by: Customer Support on Apr 2, 2026, 6:44 AM
