Male Sae O-Ring Boss-Male Bspp

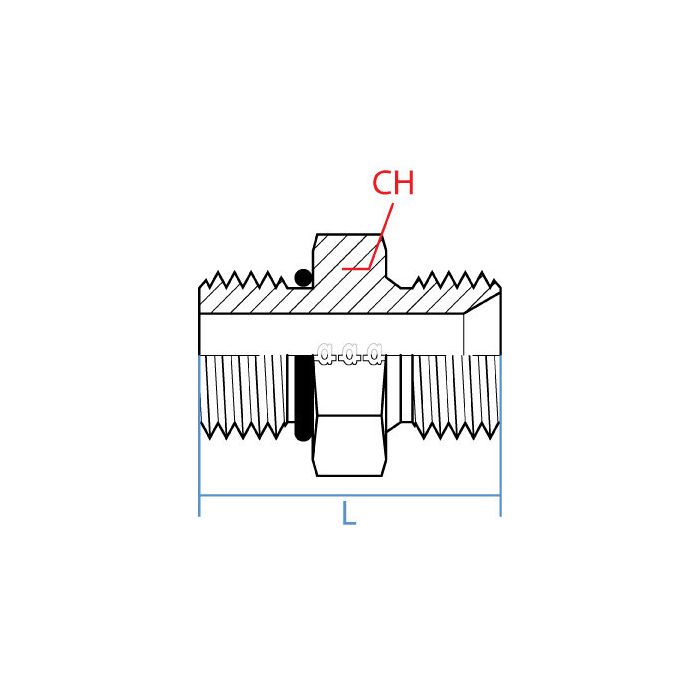

CH Width 55mm	L Length 51.2mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-5/8 - 12 UN	Side 1 Gender M	Side 1 Size 1-1/4"	Side 1 Type Orb-Sae	Side 2 Callout G 1-1/2 - 11	Side 2 Gender M	Side 2 Size 1-1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9006-20-24	Product Weight 0.94 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this here fitting work to hook up a SAE O-ring to a BSPP?

Question by: Duane W on May 18, 2025, 6:20 AM

This adapter is designed to do just that, connecting a 1-5/8 - 12 UN male SAE O-Ring Boss to a G 1-1/2 - 11 male BSPP thread.

Answer by: Customer Support on May 20, 2025, 6:17 AM

Got a piece of equipment running BSPP fittings on one end and SAE O-Ring Boss on the other, this straight adapter supposed to handle that crossover without any reducers or extra pieces in between?

Question by: Johnny B on Apr 9, 2025, 10:30 AM

That's what it's built for. One end threads into a 1-5/8 - 12 UN SAE O-Ring Boss port, and the other end is a G 1-1/2 - 11 male BSPP. No reducers, no adapters stacked on adapters. Just the one piece bridging those two thread standards. The straight configuration means it works best where your ports are already lined up and you don't need any angular offset.

Answer by: Customer Support on Apr 10, 2025, 9:33 PM
