Male Sae O-Ring Boss-Male Bspp 9006-20-20

Specifications

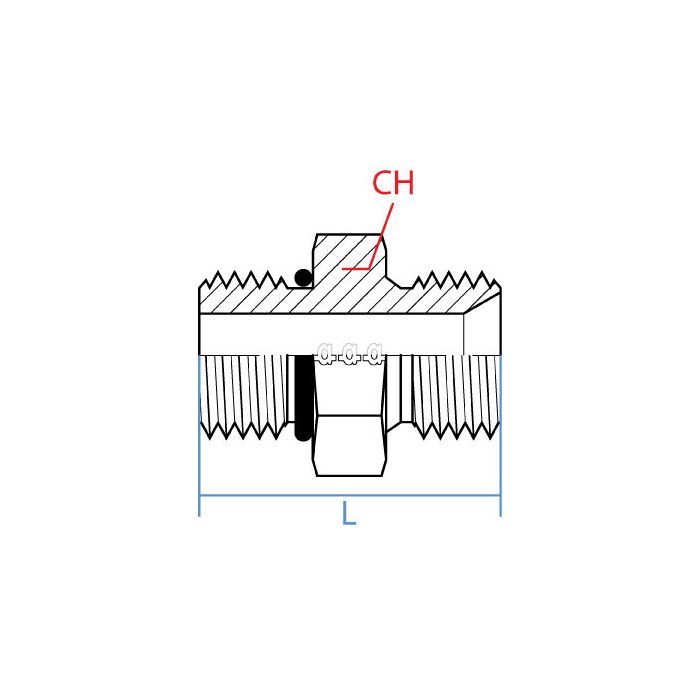

CH Width 50mm	L Length 49.8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-5/8 - 12 UN	Side 1 Gender M	Side 1 Size 1-1/4"	Side 1 Type Orb-Sae	Side 2 Callout G 1-1/4 - 11	Side 2 Gender M	Side 2 Size 1-1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9006-20-20	Product Weight 0.77 lbs

Product Questions & Answers 3

Product Questions & Answers

got a system running BSPP on one end and SAE O-ring boss ports on the other, this the kind of fitting that bridges them two together?

Question by: Hank C on Jan 16, 2026, 7:13 AM

That's what this one does. One end is a 1-5/8-12 UN SAE O-ring boss male, the other is a G 1-1/4-11 BSPP male. Both sides are 1-1/4 inch, so you're getting a straight-through adapter that connects those two thread standards without needing extra pieces in between. It's made from steel and runs 49.8mm long with a 50mm wrench width, so it's a compact, solid unit.

Answer by: Customer Support on Jan 17, 2026, 7:33 PM

got a fitting with 1-5/8 - 12 UN on one side and G 1-1/4 - 11 on the other, is that what this adapter is?

Question by: Tammy R on Jul 29, 2025, 6:07 AM

Match the ends and it lines up. One side is a 1-5/8 - 12 UN ORB SAE male, and the other side is a G 1-1/4 - 11 BSPP male. Both ends are listed as 1-1/4 inch size.

Answer by: Customer Support on Jul 30, 2025, 8:53 AM

Will this fitting hold up okay in a hydraulic setup, or is it more for low-pressure stuff?

Question by: Chad B on Oct 13, 2025, 9:21 PM

This connector is crafted from high-grade steel, which should provide the durability needed for demanding hydraulic applications.

Answer by: Customer Support on Oct 15, 2025, 3:58 PM
