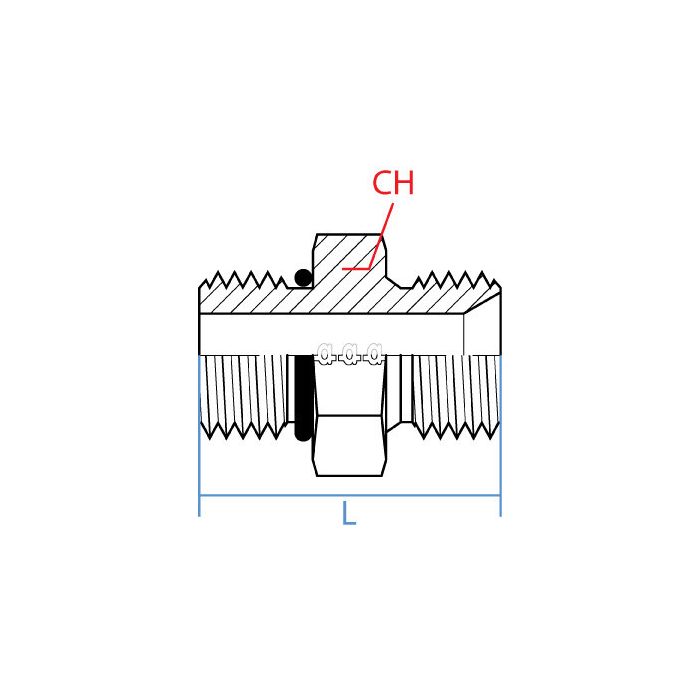

Male Sae O-Ring Boss-Male Bspp

CH Width 41mm	L Length 45.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-5/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Orb-Sae	Side 2 Callout G 1 - 11	Side 2 Gender M	Side 2 Size 1"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9006-16-16	Product Weight 0.60 lbs

Product Questions & Answers 1

Product Questions & Answers

got a hose end that’s 1-5/16 - 12 UN ORB, will this adapter mate up to a G 1 - 11 BSPP port on the other side?

Question by: Shawn P on Oct 25, 2025, 9:39 PM

Built as a straight ORB SAE male to BSPP male adapter, it has a 1-5/16 - 12 UN (ORB SAE) male on one end and a G 1 - 11 (BSPP) male on the other, both listed as 1 inch size.

Answer by: Customer Support on Oct 27, 2025, 8:47 AM
