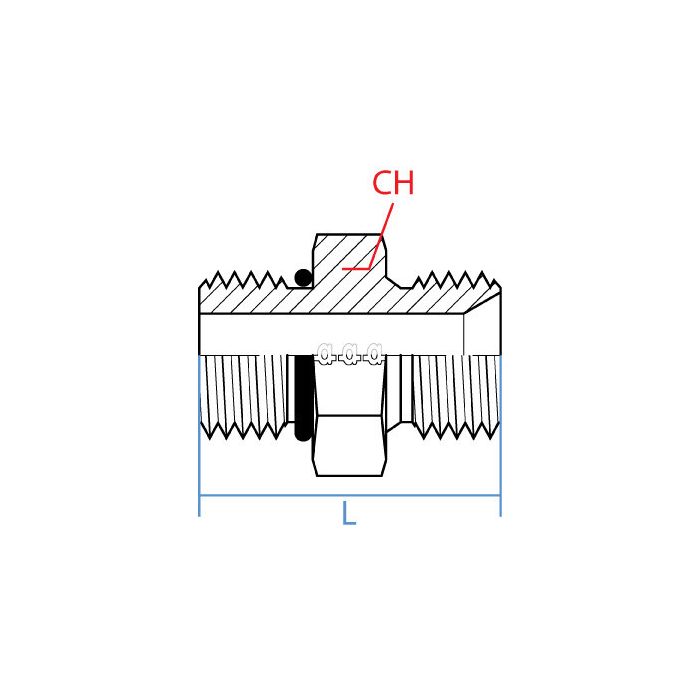

Male Sae O-Ring Boss-Male Bspp

CH Width 38mm	L Length 44.6mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-5/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Orb-Sae	Side 2 Callout G 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9006-16-12	Product Weight 0.41 lbs

Product Questions & Answers 2

Product Questions & Answers

got a line with 1-5/16 - 12 UN ORB on one side and G 3/4 - 14 BSPP on the other, is this the right adapter?

Question by: Shane R on Sep 12, 2025, 3:42 PM

For that exact thread pairing, yes. One end is a male ORB SAE thread in 1-5/16 - 12 UN (listed as Side 1, 1 inch), and the other end is a male BSPP thread in G 3/4 - 14 (Side 2, 3/4 inch). It is a straight steel fitting.

Answer by: Customer Support on Sep 14, 2025, 6:51 AM

If my setup uses metric threads, will this adapter do the trick?

Question by: Shane F on Jun 3, 2025, 9:59 PM

This fitting adapts between a 1-5/16 - 12 UN male O-ring boss and a G 3/4 - 14 male BSPP thread, so it's designed for connecting those specific thread types. If you've got metric threads, you'll need a different adapter.

Answer by: Customer Support on Jun 5, 2025, 4:29 PM
