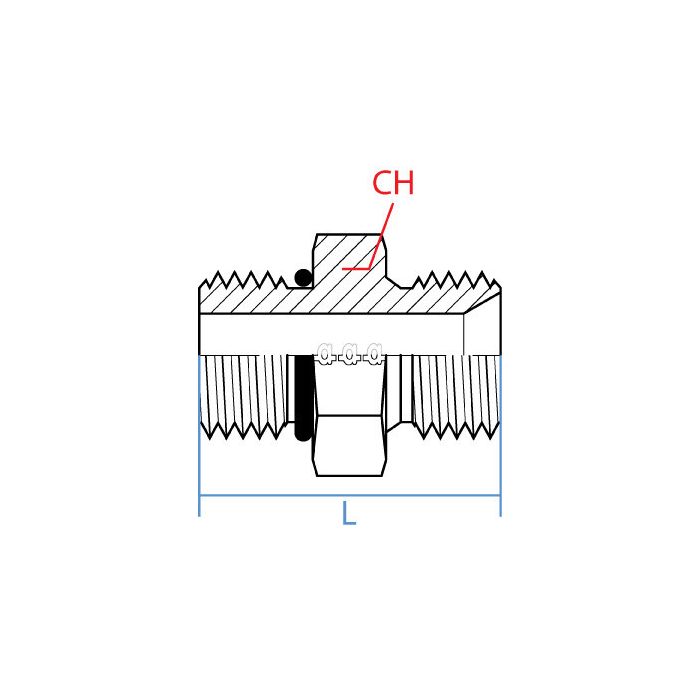

Male Sae O-Ring Boss-Male Bspp

CH Width 32mm	L Length 43.7mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Orb-Sae	Side 2 Callout G 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9006-12-12	Product Weight 0.29 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fitting hold up okay in a hydraulic system running around 2500 PSI?

Question by: Terry R on Aug 14, 2025, 8:50 AM

Crafted from durable steel, this fitting is designed for robust performance in industrial hydraulic applications.

Answer by: Customer Support on Aug 16, 2025, 6:18 AM

got a hose end with 1-1/16 - 12 UN ORB on it. is this the piece that’ll get me over to a G 3/4 - 14 port?

Question by: Tony B on Nov 25, 2025, 1:34 PM

Yes, it bridges those two thread styles in a straight steel adapter. Side 1 is a male SAE O-ring boss thread at 1-1/16 - 12 UN, and side 2 is a male BSPP thread at G 3/4 - 14, both in the 3/4 inch size callout.

Answer by: Customer Support on Nov 27, 2025, 8:20 AM
