Male Sae O-Ring Boss-Male Bspp

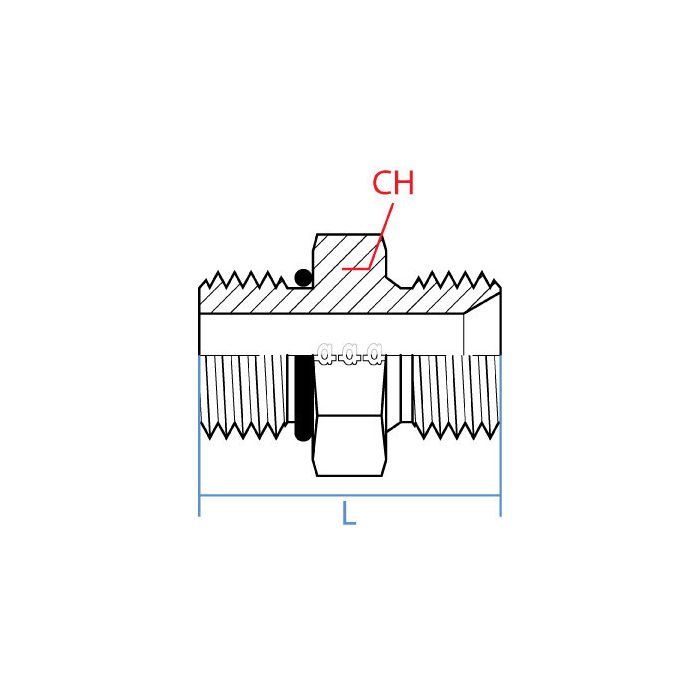

CH Width 32mm	L Length 42.6mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Orb-Sae	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9006-12-08	Product Weight 0.26 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a piece of equipment running BSPP fittings on one end and SAE O-ring boss on the other, this adapter supposed to bridge that gap?

Question by: Cindy G on May 17, 2025, 12:31 PM

That's exactly what it does. The 9006-12-08 runs a 3/4" SAE O-ring boss on one end and a 1/2" BSPP male thread on the other, so it lets you tie together systems that use those two different thread standards without modifying either side. Both ends are male, the shape is straight, and the whole thing is steel construction. If your equipment has those two thread types that need to meet up, this is a direct solution for that.

Answer by: Customer Support on May 18, 2025, 1:38 PM
