Male Sae O-Ring Boss-Male Bspp 9006-10-10

Specifications

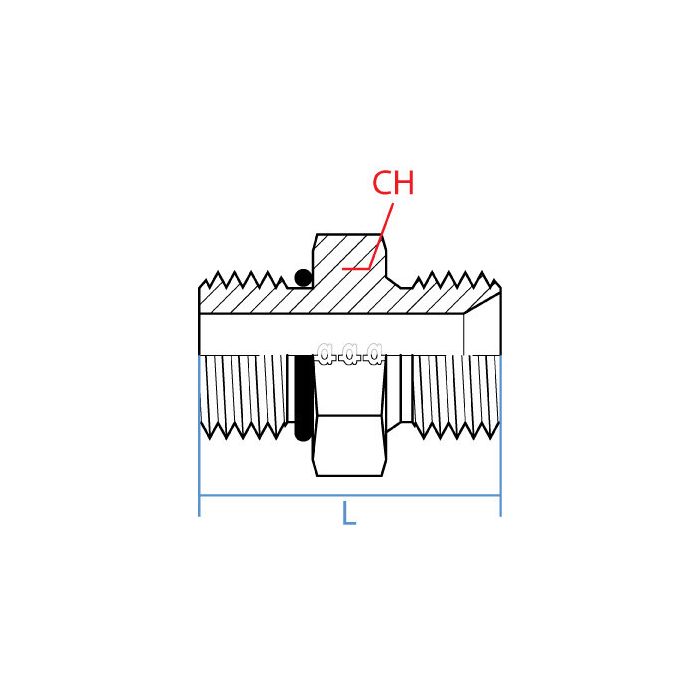

CH Width 29mm	L Length 39.3mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Orb-Sae	Side 2 Callout G 5/8 - 14	Side 2 Gender M	Side 2 Size 5/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9006-10-10	Product Weight 0.23 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a machine running SAE O-Ring Boss ports and the other end needs to tie into a BSPP line. This the right piece for that?

Question by: Danny W on Apr 2, 2026, 11:35 AM

That's what this adapter is built for. One end is a 7/8-14 UNF SAE O-Ring Boss male, and the other is a G 5/8-14 BSPP male, so it bridges those two thread standards in one compact fitting. Both sides are 5/8 inch, the body is steel, and it comes in at 39.3mm long and 29mm wide, so it won't take up much room in a tight hydraulic connections layout. Made by Adaptall, part number 9006-10-10.

Answer by: Customer Support on Apr 3, 2026, 9:26 PM

Will this here fitting hold up okay for hooking up a hydraulic cylinder on my backhoe?

Question by: Bobby H on Dec 12, 2025, 2:23 PM

This adapter is made from steel, so it's built tough for demanding industrial jobs. It should be up to the task for your backhoe's hydraulic cylinder.

Answer by: Customer Support on Dec 14, 2025, 6:05 AM

trying to hook an SAE O-ring boss hose end to a BSPP port, is that what this adapter’s for?

Question by: Lee R on May 27, 2025, 2:18 PM

Built for mixed-fitting hookups, it gives you a straight male SAE O-Ring Boss on one side and a straight male BSPP on the other, so you can bridge those two thread styles in the same hydraulic connection.

Answer by: Customer Support on May 29, 2025, 10:11 AM
