Male Sae O-Ring Boss-Male Bspp

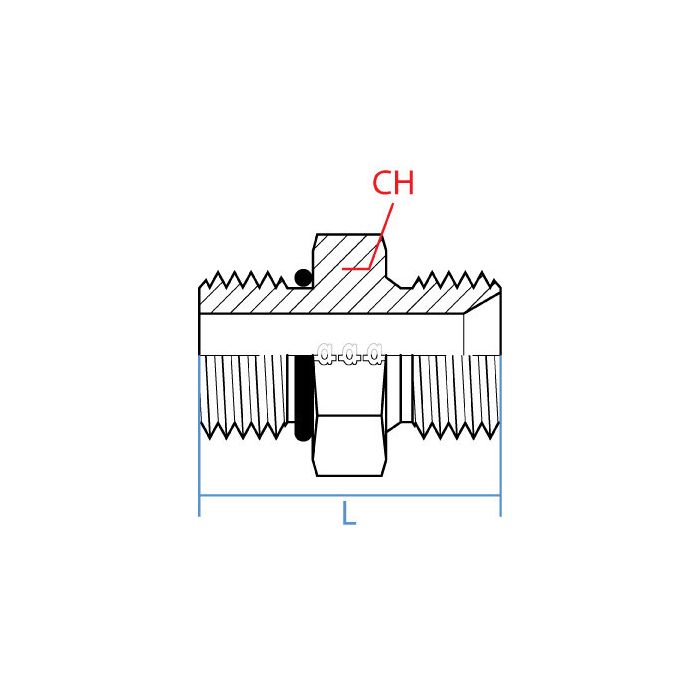

CH Width 32mm	L Length 41.4mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Orb-Sae	Side 2 Callout G 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9006-08-12	Product Weight 0.22 lbs

Product Questions & Answers 2

Product Questions & Answers

got a hose end that’s 1/2" SAE ORB with 3/4-16 UNF. is this the straight adapter to go over to BSPP?

Question by: Hugh M on Jun 30, 2025, 3:16 PM

For that setup, you are looking at the right style. One end is a 1/2 inch male SAE O-Ring Boss with 3/4-16 UNF threads, and the other end is a 3/4 inch male BSPP with a G 3/4-14 thread, in a straight steel fitting.

Answer by: Customer Support on Jul 1, 2025, 7:46 PM

Got a machine running BSPP ports and the hydraulic line coming off it is SAE O-Ring Boss. This fitting gonna bridge that gap straight up, or do I need something else in between?

Question by: Curt B on Jun 14, 2025, 12:55 PM

That's exactly what this one's built for. One end is 1/2" male SAE O-Ring Boss with a 3/4-16 UNF thread, and the other is 3/4" male BSPP with a G 3/4-14 thread. It goes straight between those two connection types with no extra adapters needed. Steel construction, straight profile, 32mm wrench flat to torque it down proper. At 41.4mm overall length it's a pretty compact inline solution for that exact crossover.

Answer by: Customer Support on Jun 16, 2025, 11:53 AM
