Male Sae O-Ring Boss-Male Bspp

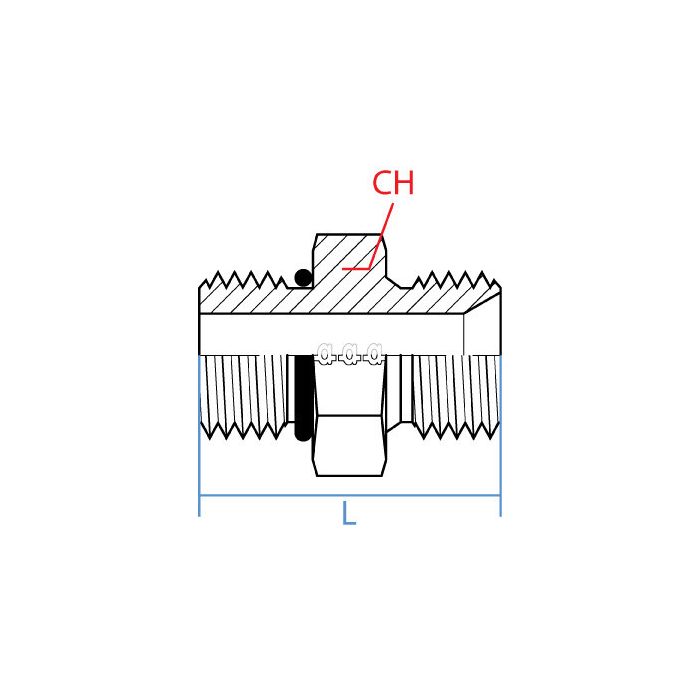

CH Width 22mm	L Length 31mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Orb-Sae	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9006-08-04	Product Weight 0.10 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a piece of equipment running BSPP fittings on one port and SAE ORB on the other, this adapter work for bridging those two?

Question by: Dwayne H on Aug 25, 2025, 5:10 PM

That's exactly what it's built for. One end is a 1/2" SAE O-Ring Boss with a 3/4-16 UNF male thread, and the other is a 1/4" BSPP male with a G 1/4-19 thread. Steel construction, straight profile, so it drops right into a mixed-thread setup without needing additional hardware between the two connections.

Answer by: Customer Support on Aug 27, 2025, 12:33 PM
