Male Sae 0-Ring Boss-Male Bspp

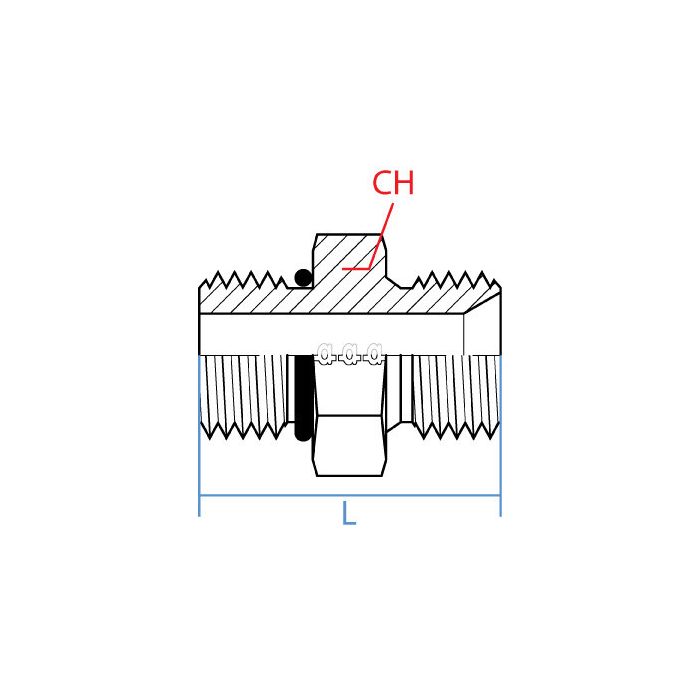

CH Width 27mm	L Length 33.8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Orb-Sae	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9006-06-08	Product Weight 0.02 lbs

Product Questions & Answers 1

Product Questions & Answers

i’ve got a 9/16-18 ORB on one side and need to go over to a G 1/2-14 BSPP port, is this the right adapter?

Question by: Billy H on Apr 25, 2025, 8:04 AM

For that ORB to BSPP changeover, this connector matches a 9/16-18 UNF ORB SAE male on one end and a G 1/2-14 BSPP male on the other. It is a straight steel adapter, so it is meant to connect those two thread types directly.

Answer by: Customer Support on Apr 27, 2025, 6:55 AM
