Male Sae O-Ring Boss-Male Bspp

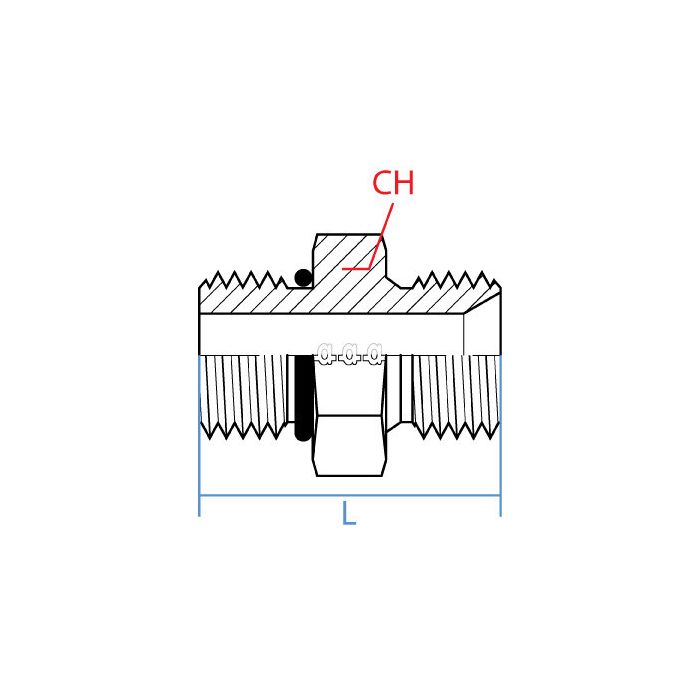

CH Width 19mm	L Length 27.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Orb-Sae	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Alternate Part Numbers Alternate Part Number 3620-06-04, Alternate Part Number 9006-0604	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9006-06-04	Product Weight 0.08 lbs

Product Questions & Answers 2

Product Questions & Answers

Can this here fitting handle hydraulic fluid okay?

Question by: Harold W on Apr 27, 2025, 6:21 PM

This adapter is made from steel, so it's compatible with standard hydraulic fluids used in most systems.

Answer by: Customer Support on Apr 29, 2025, 6:28 AM

trying to hook an SAE ORB port to a BSPP port, is this the straight adapter for that?

Question by: Terry P on Jul 25, 2025, 1:43 PM

For tying two different thread standards together, this one is a straight steel adapter with a 3/8 inch male SAE O-Ring Boss end (9/16-18 UNF) and a 1/4 inch male BSPP end (G 1/4-19). It is meant for straight-line connections between SAE and BSP hydraulic circuits.

Answer by: Customer Support on Jul 27, 2025, 8:05 AM
