Male Sae O-Ring Boss-Male Bspp

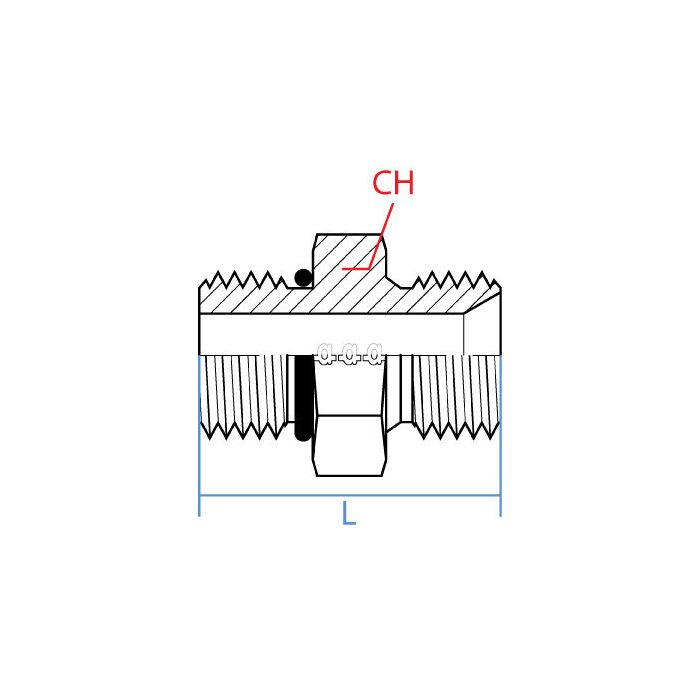

CH Width 27mm	L Length 34.4mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Orb-Sae	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9006-04-08	Product Weight 0.11 lbs

Product Questions & Answers 1

Product Questions & Answers

trying to tie a 1/4 ORB port into a G 1/2 BSPP line, is this the right adapter?

Question by: Lance D on Nov 21, 2025, 7:58 AM

For that exact thread mix, it matches up as a straight steel adapter with a 1/4 inch male SAE O-ring boss end (7/16-20 UNF) and a 1/2 inch male BSPP end (G 1/2-14), so it’s meant to join those two connection types in the same hydraulic circuit.

Answer by: Customer Support on Nov 23, 2025, 8:47 AM
