Mjic-Mbspp Elastomeric Sealed

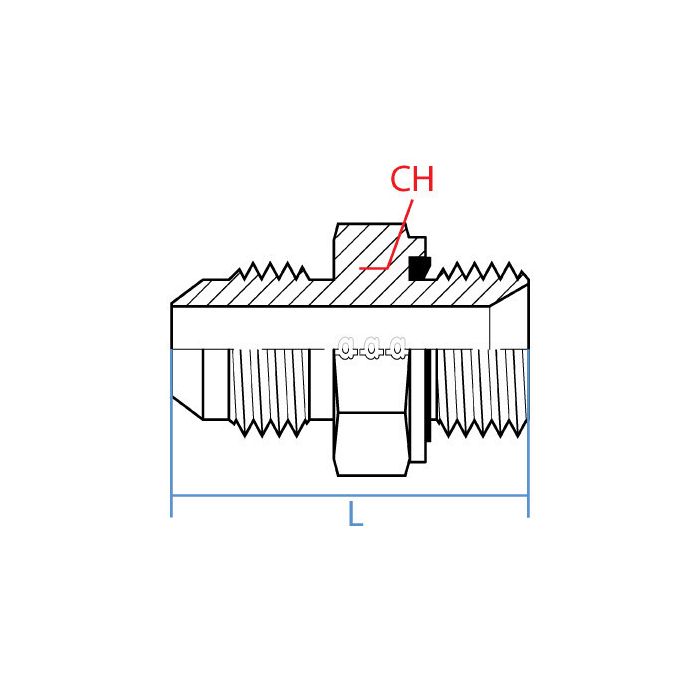

CH Width 30mm	L Length 42.6mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout G 5/8 - 14	Side 2 Gender M	Side 2 Size 5/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9005ES-08-10	Product Weight 0.20 lbs

Product Questions & Answers 2

Product Questions & Answers

got a hose end that’s 1/2 JIC male, and the port i need to hit is 5/8 BSPP. is this the right adapter for that?

Question by: Neal M on Oct 10, 2025, 12:59 PM

For a straight JIC to BSPP changeover, it matches those sizes: 1/2 inch Male JIC with 3/4-16 UNF on one side, and 5/8 inch Male BSPP with G 5/8-14 on the other.

Answer by: Customer Support on Oct 11, 2025, 5:06 PM

Got a piece of European equipment that uses a G 5/8-14 port and I need to tie it into a JIC line on the hydraulic circuit. This the right adapter for that kind of hookup?

Question by: Johnny A on Feb 2, 2026, 10:56 AM

Yeah, that's exactly what this one's built for. One end is 1/2" Male JIC with a 3/4-16 UNF thread, and the other is 5/8" Male BSPP running a G 5/8-14 thread. Straight profile, steel construction, and it goes in without needing any extra fittings in between. The elastomeric seal handles the leak resistance side of things, so you're not depending on thread engagement alone to keep fluid where it belongs.

Answer by: Customer Support on Feb 4, 2026, 6:19 AM
