Mjic-Mbspp Elastomeric Sealed

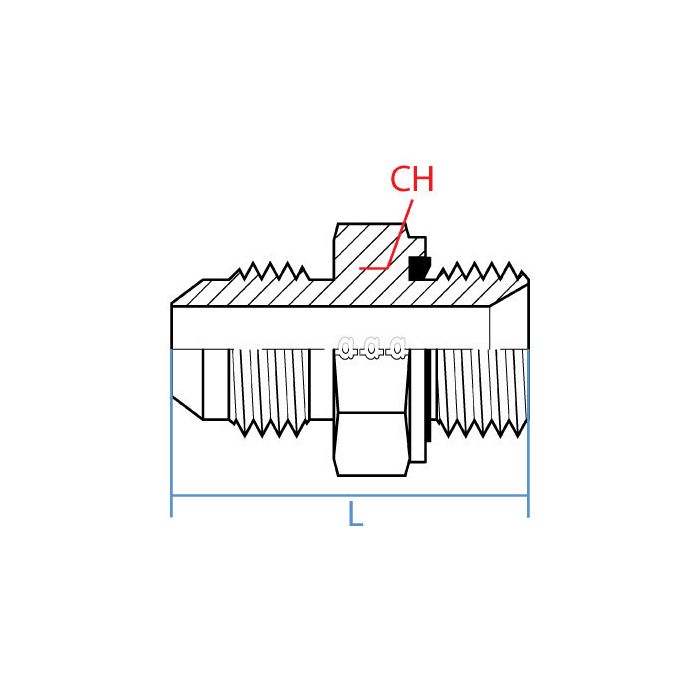

CH Width 19mm	L Length 38.6mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9005ES-08-04	Product Weight 0.10 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a piece of equipment running a JIC line that needs to tie into a BSPP port, this the right adapter to bridge that gap?

Question by: Vince H on Jan 21, 2026, 12:34 PM

That's what this one's built for. One end is 1/2" Male JIC on a 3/4-16 UNF thread, and the other is 1/4" Male BSPP on a G 1/4-19 thread. The elastomeric seal on the BSPP end handles the face or port seal so you get a leak-resistant connection without needing extra fittings in between. Steel construction, straight profile, and it comes in at just under 39mm long, so it'll fit in tighter spots without much fuss.

Answer by: Customer Support on Jan 22, 2026, 2:49 PM

What size wrench do I need for this lil' guy?

Question by: Kent M on Aug 2, 2025, 7:56 AM

You'll need a 19mm wrench for tightening this adapter.

Answer by: Customer Support on Aug 3, 2025, 1:38 PM
