Mjic-Mbspp Elastomeric Sealed 9005ES-06-12

Specifications

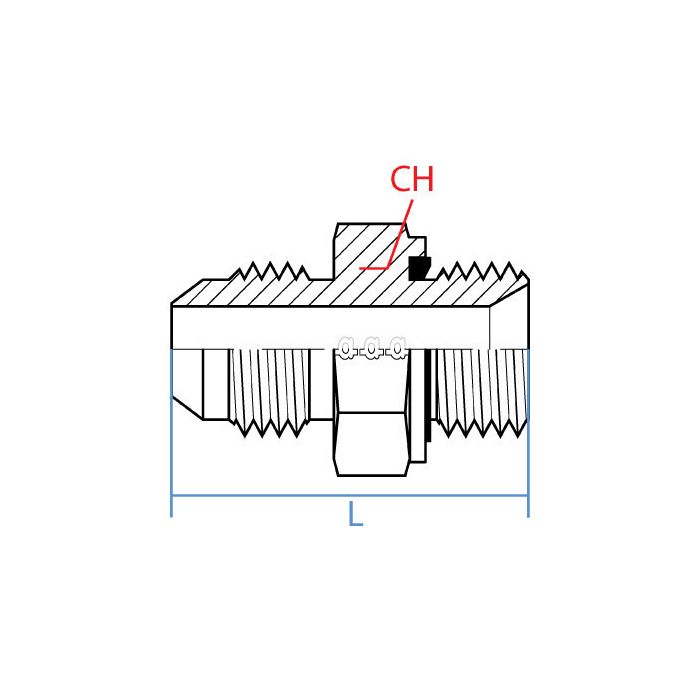

CH Width 32mm	L Length 43.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout G 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9005ES-06-12	Product Weight 0.25 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to swap a hose over, is this the straight adapter that goes 3/8 JIC male to 3/4 BSPP male

Question by: Eddie J on Jul 29, 2025, 7:46 AM

For that exact conversion, you’re on the right track. Side 1 is a 3/8 inch JIC male with a 9/16 - 18 UNF thread, and Side 2 is a 3/4 inch BSPP male with a G 3/4 - 14 thread, in a straight steel body.

Answer by: Customer Support on Jul 31, 2025, 6:02 AM

got a piece of equipment running BSPP ports and need to tie into a JIC line, this a straight-through adapter or does it have some kind of angle to it?

Question by: Dean H on Jan 16, 2026, 6:59 AM

Straight through, no angle. One end is a 3/8" JIC male with a 9/16-18 UNF thread, and the other is a 3/4" BSPP male on a G 3/4-14 thread. The fitting runs 43.1mm long and takes a 32mm wrench, so it sits pretty compact in tight spots. Steel construction, Adaptall brand, part number 9005ES-06-12 if you need to reference it on an order.

Answer by: Customer Support on Jan 17, 2026, 7:46 PM

Will this here adapter work to connect a JIC fitting to a BSPP one?

Question by: Carl J on Oct 28, 2025, 9:53 PM

Absolutely, this straight steel adapter is designed to connect a 3/8" JIC male end to a 3/4" BSPP male end.

Answer by: Customer Support on Oct 30, 2025, 2:51 PM
