Mjic-Mbspp Elastomeric Sealed

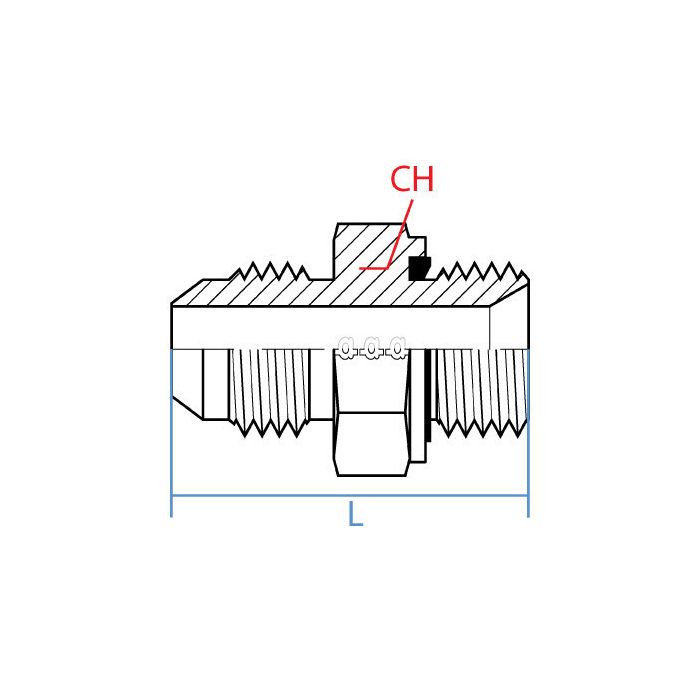

CH Width 19mm	L Length 35mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Alternate Part Numbers Alternate Part Number MI-07009743, Alternate Part Number MINO-03671X04545	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9005ES-04-04	Product Weight 0.07 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this here fitting work alright for connecting up a pressure gauge?

Question by: Lance R on Sep 1, 2025, 7:53 PM

This Adaptall adapter is designed to connect a 7/16 - 20 UNF male JIC fitting to a G 1/4 - 19 male BSPP fitting, making it suitable for adapting pressure gauges or other instruments to hydraulic systems.

Answer by: Customer Support on Sep 2, 2025, 9:49 PM

Got a piece of equipment running British fittings on one port and JIC on the other. Will this adapter bridge that gap without needing extra pieces in between?

Question by: Wes D on Apr 24, 2025, 8:11 PM

Straight shot, one piece. One end is a 1/4" male JIC (7/16-20 UNF thread) and the other is a 1/4" male BSPP (G 1/4-19 thread). Both sides are male, so you'll need female receivers on each end of your existing lines. No additional adapters required to make that JIC-to-BSPP conversion happen.

Answer by: Customer Support on Apr 26, 2025, 6:30 AM
