Male Jic X Male Bspp 9005-32-20

Specifications

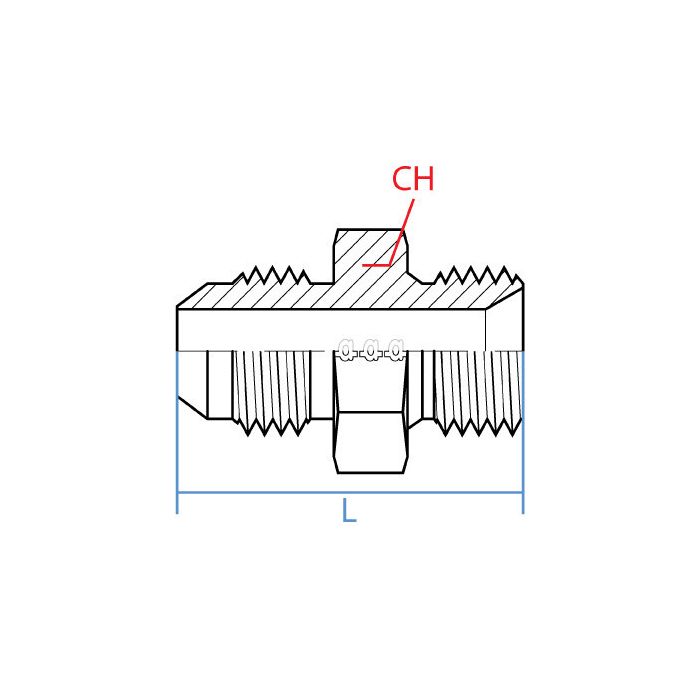

CH Width 70mm	L Length 71.8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 2-1/2 - 12 UN	Side 1 Gender M	Side 1 Size 2"	Side 1 Type Jic	Side 2 Callout G 1-1/4 - 11	Side 2 Gender M	Side 2 Size 1-1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9005-32-20	Product Weight 1.60 lbs

Product Questions & Answers 3

Product Questions & Answers

What kind of steel is this fitting made from? Just need to make sure it holds up.

Question by: Rod F on Dec 1, 2025, 4:24 PM

Constructed from robust steel, this adapter is designed for hydraulic connections that demand resilience.

Answer by: Customer Support on Dec 3, 2025, 6:06 AM

trying to swap a hose end over, what threads are on each side of this adapter?

Question by: Troy W on Sep 6, 2025, 10:14 AM

On the JIC side it is a 2 inch male with 2-1/2 - 12 UN threads, and the other end is a 1-1/4 inch male BSPP with G 1-1/4 - 11 threads.

Answer by: Customer Support on Sep 8, 2025, 6:12 AM

Got a piece of equipment running BSPP fittings and I need to tie into a JIC line, this a straight adapter or does it got some kind of angle to it?

Question by: Todd C on Apr 23, 2025, 12:43 PM

Straight through, no angle. One end is a 2-inch JIC male with a 2-1/2-12 UN thread, and the other is a 1-1/4-inch BSPP male on a G 1-1/4-11 thread. Both ends point the same direction, so it works best where you've got a clean inline connection and enough clearance to run things straight.

Answer by: Customer Support on Apr 25, 2025, 6:36 AM
