Male Jic X Male Bspp

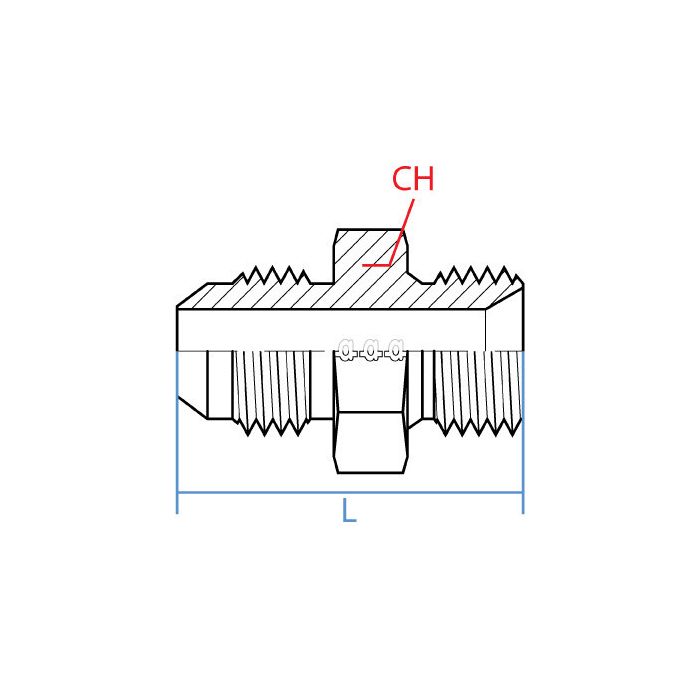

CH Width 70mm	L Length 65.2mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-7/8 - 12 UN	Side 1 Gender M	Side 1 Size 1-1/2"	Side 1 Type Jic	Side 2 Callout G 2 - 11	Side 2 Gender M	Side 2 Size 2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9005-24-32	Product Weight 1.45 lbs

Product Questions & Answers 2

Product Questions & Answers

got a hose end that’s 1-7/8 - 12 UN JIC, will this adapter screw right onto it?

Question by: Wes H on Dec 10, 2025, 12:32 PM

Fit comes down to the threads on each side. This adapter has a male JIC end with 1-7/8 - 12 UN threads (listed as 1-1/2 inch JIC) and a male BSPP end with G 2 - 11 threads (2 inch BSPP), so it will mate with a matching female JIC 1-7/8 - 12 UN connection.

Answer by: Customer Support on Dec 12, 2025, 11:00 AM

Got a system running G 2-11 BSPP ports and need to tie into some JIC lines on the other end. This the right piece for that?

Question by: Lance R on Mar 15, 2026, 8:54 PM

That's what this adapter is built for. One end is a 1-1/2" JIC male with a 1-7/8-12 UN thread, and the other is a 2" BSPP male on a G 2-11 thread. Steel construction, straight body, so if your JIC and BSPP connections are both male ports needing a male-to-male bridge, this fits right in without any modification.

Answer by: Customer Support on Mar 17, 2026, 6:21 AM
