Male Jic X Male Bspp

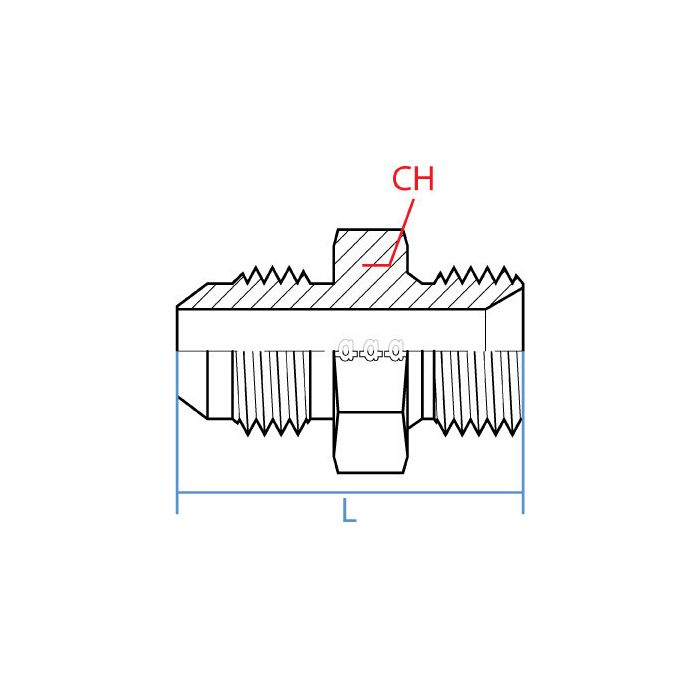

CH Width 55mm	L Length 61.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-7/8 - 12 UN	Side 1 Gender M	Side 1 Size 1-1/2"	Side 1 Type Jic	Side 2 Callout G 1-1/2 - 11	Side 2 Gender M	Side 2 Size 1-1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9005-24-24	Product Weight 1.05 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to tie a jic hose end into a bspp port. is this the right adapter for that?

Question by: Kent B on Apr 5, 2026, 8:46 PM

For connecting mixed standards, it gives you a male JIC 37 degree flare on one side and a male BSPP parallel thread on the other. Both ends are 1-1/2 inch nominal, with the JIC thread called out as 1-7/8-12 UN and the BSPP side as G 1-1/2-11.

Answer by: Customer Support on Apr 7, 2026, 6:40 AM

Both sides are male on this thing, right? Just want to make sure before I go trying to thread it into two female ports on my manifold setup.

Question by: Cindy A on Nov 3, 2025, 9:52 AM

Correct, both ends are male. One side carries a male JIC 37-degree flare thread sized at 1-7/8-12 UN, and the other is a male BSPP parallel thread at G 1-1/2-11. So you'd need a female JIC port on one end and a female BSPP port on the other to make up the connection properly.

Answer by: Customer Support on Nov 5, 2025, 6:39 AM
