Male Jic X Male Bspp 9005-20-20

Specifications

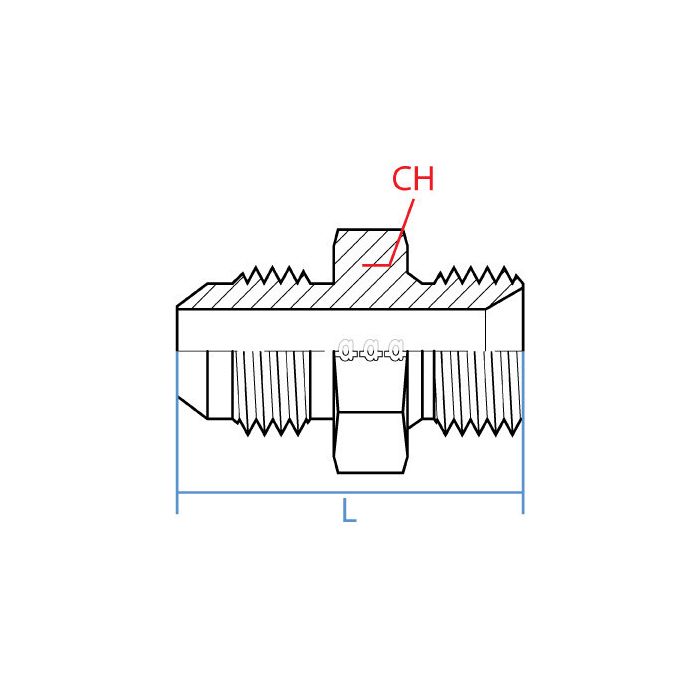

CH Width 50mm	L Length 55.3mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-5/8 - 12 UN	Side 1 Gender M	Side 1 Size 1-1/4"	Side 1 Type Jic	Side 2 Callout G 1-1/4 - 11	Side 2 Gender M	Side 2 Size 1-1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9005-20-20	Product Weight 0.80 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this fitting hold up okay in a hydraulic system for farm equipment?

Question by: Clint M on Feb 3, 2026, 8:11 AM

Engineered for demanding industrial use, this adapter is made from durable steel, so it should provide a long service life even under high pressure.

Answer by: Customer Support on Feb 4, 2026, 8:51 AM

got a hose end that’s 1-5/8-12 UN JIC male and a port that’s G 1-1/4-11 BSPP male. is this the right straight adapter to tie those together

Question by: Lynn M on Nov 24, 2025, 8:27 PM

For tying those two thread standards together, this adapter matches a 1-5/8 - 12 UN JIC male on one end and a G 1-1/4 - 11 BSPP male on the other, both in the 1-1/4 inch size, and it is a straight steel fitting.

Answer by: Customer Support on Nov 26, 2025, 10:25 AM

Got a hydraulic line running JIC on one end and BSPP on the other, this straight adapter gonna bridge that gap without needing extra fittings in between?

Question by: Carl E on Dec 20, 2025, 8:57 AM

That's what it's built for. One end is a 1-5/8-12 UN JIC male, the other is a G 1-1/4-11 BSPP male, both at 1-1/4" size. So if your line has those two thread standards on opposing ends, this adapter connects them directly with no additional hardware needed.

Answer by: Customer Support on Dec 22, 2025, 6:07 AM
