Male Jic X Male Bspp 9005-20-16

Specifications

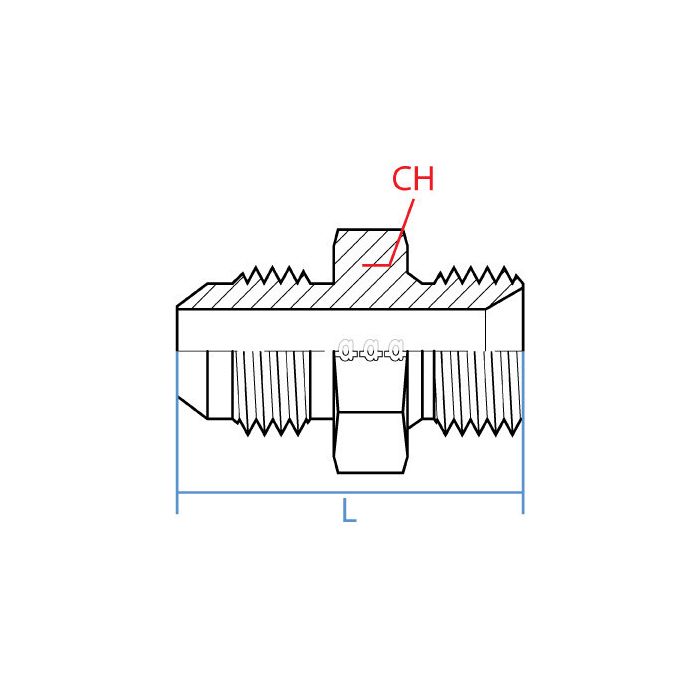

CH Width 44.5mm	L Length 59.7mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-5/8 - 12 UN	Side 1 Gender M	Side 1 Size 1-1/4"	Side 1 Type Jic	Side 2 Callout G 1 - 11	Side 2 Gender M	Side 2 Size 1"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9005-20-16	Product Weight 0.55 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this adapter hold up okay in a hydraulic system that runs pretty hot?

Question by: Travis R on Jan 19, 2026, 8:00 AM

Steel construction provides the durability needed in pressurized hydraulic lines, including systems where higher temperatures are present.

Answer by: Customer Support on Jan 20, 2026, 2:32 PM

got a hose end that’s 1-1/4 JIC, and the other side of my setup is 1" BSPP. is this the right adapter to tie those together?

Question by: Debbie H on May 14, 2025, 6:02 AM

Built for exactly that mix, it connects a 1-1/4 inch Male JIC with 1-5/8-12 UN threads to a 1 inch Male BSPP with G 1-11 threads, in a straight steel adapter.

Answer by: Customer Support on May 15, 2025, 2:11 PM

Got a piece of imported equipment with a 1" BSPP port and the hydraulic line coming off it is JIC, does this adapter go between those two directly, or do I need something else in the middle?

Question by: Tommy P on Jan 27, 2026, 7:43 PM

That's exactly what this one handles. One end is 1-1/4" Male JIC on a 1-5/8-12 UN thread, and the other end is 1" Male BSPP on a G 1-11 thread. Both sides are male, so you'd be threading each end into its respective female port on your line and your equipment. No additional fittings needed to bridge those two standards, it goes straight from one to the other in a single piece.

Answer by: Customer Support on Jan 29, 2026, 6:45 AM
