Male Jic X Male Bspp

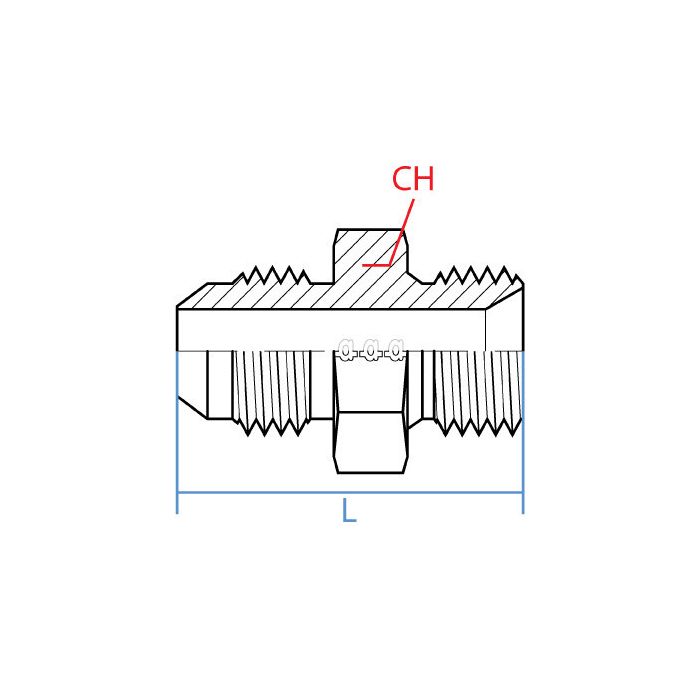

CH Width 36mm	L Length 52.3mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-5/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Jic	Side 2 Callout G 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9005-16-12	Product Weight 0.33 lbs

Product Questions & Answers 1

Product Questions & Answers

got a piece of equipment running JIC on one end and BSPP on the other, will this adapter connect them direct without needing an extra fitting in between?

Question by: Judy T on Mar 24, 2026, 9:50 AM

That's what this one's built for. One end is a 1-5/16-12 UN male JIC, which covers the 1" JIC side, and the other end is a G 3/4-14 male BSPP for the 3/4" port. Both ends are male, so you're threading directly into female ports on each piece of equipment. No extra unions or adapters needed in most setups where those two thread standards meet.

Answer by: Customer Support on Mar 25, 2026, 7:23 PM
