Male Jic X Male Bspp 9005-12-12

Specifications

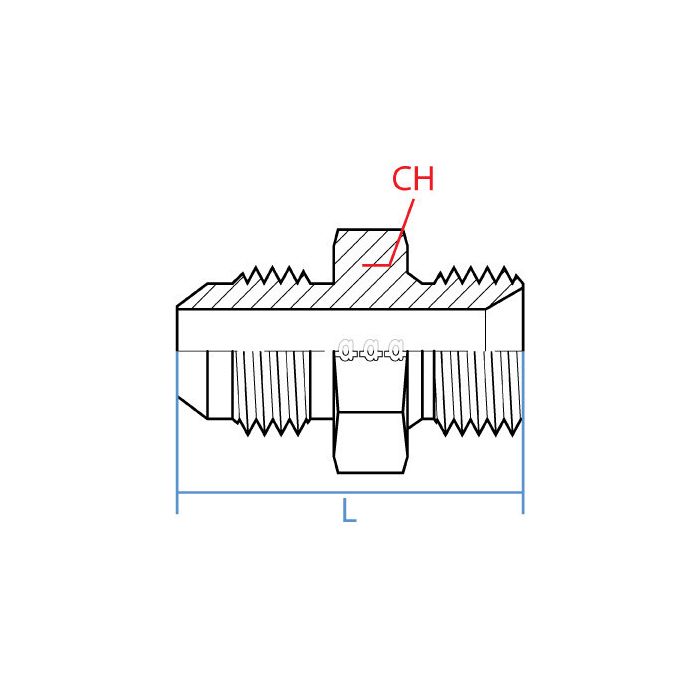

CH Width 32mm	L Length 53.4mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout G 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9005-12-12	Product Weight 0.30 lbs

Product Questions & Answers 3

Product Questions & Answers

What size is each end of this thing? Just wanna make sure it'll fit right.

Question by: Lee R on Aug 18, 2025, 8:30 PM

This adapter features a 3/4" Jic male end and a 3/4" Bspp male end. The JIC end has a 1-1/16 - 12 UN thread, while the BSPP end is G 3/4 - 14.

Answer by: Customer Support on Aug 20, 2025, 6:22 AM

Got a hydraulic line running G 3/4 BSPP on one end and JIC on the other, this adapter work for that?

Question by: Shane J on Dec 4, 2025, 7:30 AM

That's what this fitting handles. One end is 1-1/16-12 UN JIC male, the other is G 3/4-14 BSPP male, so it bridges those two thread standards directly without needing any additional fittings in between. Both sides are 3/4" size, and the whole thing is machined from steel, so it holds up well in working hydraulic lines. Straight configuration, 53.4mm long and 32mm across the wrench flats.

Answer by: Customer Support on Dec 5, 2025, 4:02 PM

got a hose end that’s 1-1/16-12 JIC male, will this adapter match up to it?

Question by: Keith W on Feb 12, 2026, 7:25 AM

On the JIC side, it has a 1-1/16 - 12 UN male JIC end (3/4 inch size), so it matches a connection that calls for that exact JIC male thread.

Answer by: Customer Support on Feb 14, 2026, 6:11 AM
