Male Jic X Male Bspp 9005-12-10

Specifications

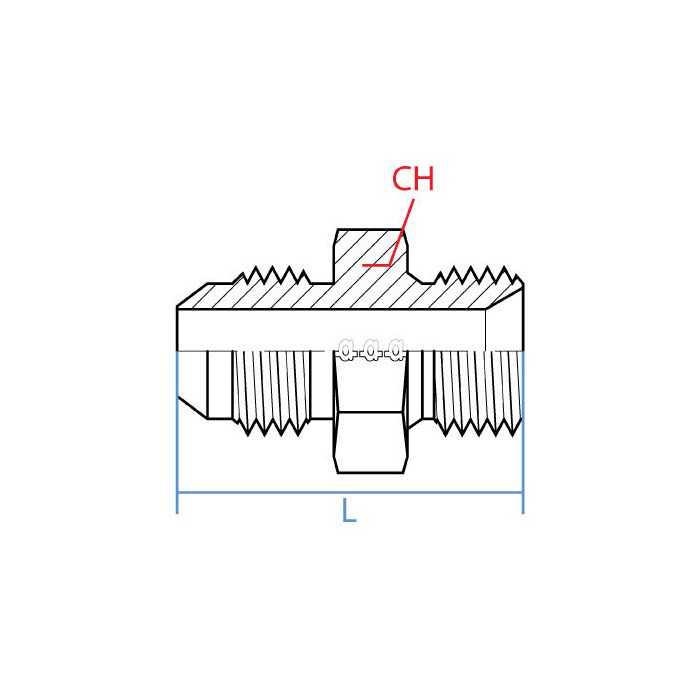

CH Width 30mm	L Length 49.8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout G 5/8 - 14	Side 2 Gender M	Side 2 Size 5/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9005-12-10	Product Weight 0.30 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this here adapter fit right with my existing JIC and BSPP lines? I got a 3/4" JIC and a 5/8" BSPP.

Question by: Kirk C on Dec 19, 2025, 7:39 PM

This adapter's designed to connect a 3/4" Male JIC fitting (1-1/16-12 UN thread) to a 5/8" Male BSPP fitting (G 5/8-14 thread), so it should work just fine for what you're describing. Just make sure your lines are male fittings.

Answer by: Customer Support on Dec 21, 2025, 10:43 AM

trying to tie a 3/4 male JIC hose end into a BSPP port, is this the right adapter?

Question by: Dale W on Aug 23, 2025, 7:35 PM

For bridging those two thread styles, it matches a 3/4 inch Male JIC on one side with a 1-1/16-12 UN thread, and a 5/8 inch Male BSPP on the other with a G 5/8-14 thread. It is a straight steel adapter meant for systems where JIC and BSPP have to meet.

Answer by: Customer Support on Aug 25, 2025, 10:14 AM

Got a piece of equipment running JIC lines that needs to tie into a BSPP port, this the kind of adapter that'd handle that crossover?

Question by: Jean H on May 27, 2025, 8:13 PM

That's what this one's built for. One end threads into a 3/4" JIC fitting using a 1-1/16-12 UN thread, and the other end steps over to a 5/8" BSPP port with a G 5/8-14 thread. Steel construction, straight configuration, so it's a solid choice anywhere you're bridging those two thread standards in a hydraulic circuit.

Answer by: Customer Support on May 29, 2025, 5:41 PM
