Male Jic X Male Bspp

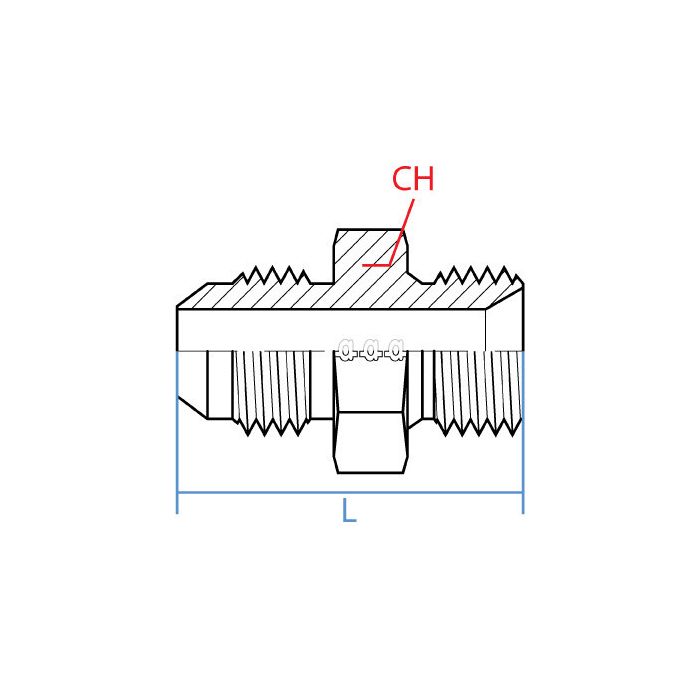

CH Width 32mm	L Length 48mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Jic	Side 2 Callout G 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9005-10-12	Product Weight 0.25 lbs

Product Questions & Answers 2

Product Questions & Answers

got a hose end that’s 7/8-14 UNF JIC, will this adapter mate up to a G 3/4-14 BSPP port on the other side?

Question by: Steve B on Jun 7, 2025, 11:20 AM

For that combo, it’s a straight male JIC to male BSPP adapter with 7/8 - 14 UNF on the JIC side and G 3/4 - 14 on the BSPP side, so it matches the thread callouts you listed.

Answer by: Customer Support on Jun 9, 2025, 11:03 AM

got a piece of equipment running JIC fittings on one end but the other connection is BSPP, this adapter gonna bridge that gap?

Question by: Ricky F on Dec 6, 2025, 8:46 PM

That's exactly what this fitting handles. One end is a 7/8-14 UNF male JIC thread, which corresponds to a 5/8" JIC size, and the other end is a G 3/4-14 male BSPP thread at 3/4". So if your JIC side matches those specs, you're in good shape to make that connection work without additional adapters in between.

Answer by: Customer Support on Dec 7, 2025, 9:24 PM
