Male Jic X Male Bspp

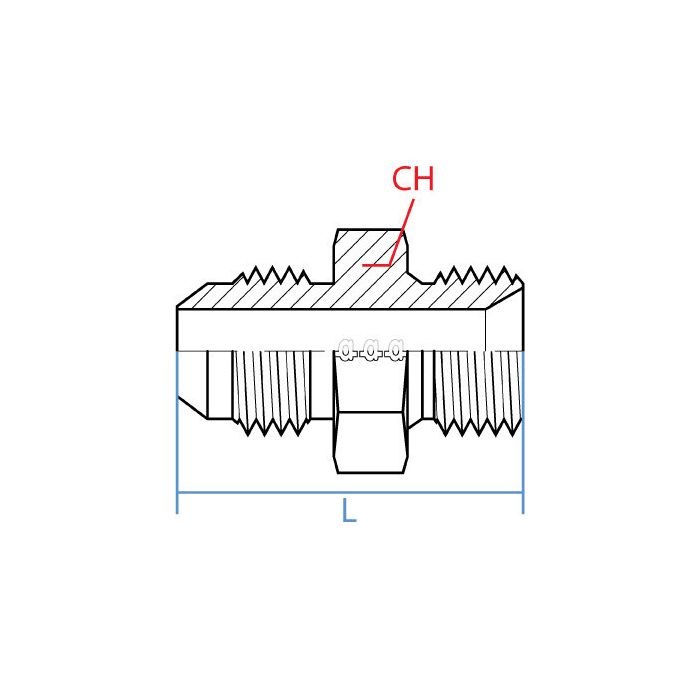

CH Width 27mm	L Length 44mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Jic	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9005-10-08	Product Weight 0.20 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a piece of equipment running a BSPP port and my hydraulic line terminates in a JIC fitting, does this adapter go between them without needing any extra pieces?

Question by: Darryl M on Dec 23, 2025, 8:13 PM

That's exactly what it's built for. One end is a 7/8-14 UNF JIC male thread in the 5/8" size, and the other is a G 1/2-14 BSPP male thread. Both ends are male, so you're threading each side directly into its matching female port or coupling. No additional pieces needed for that connection. The straight body keeps everything inline at 44mm total length, which helps in tighter spots where a bulkier adapter wouldn't fit clean.

Answer by: Customer Support on Dec 25, 2025, 10:14 AM

trying to hook a 5/8 jic line to a 1/2 bspp port, is this the right adapter?

Question by: Donna T on Apr 3, 2026, 5:32 PM

Match the thread callouts and it lines up: one side is a 5/8 inch JIC male with 7/8-14 UNF threads, and the other side is a 1/2 inch BSPP male with G 1/2-14 threads.

Answer by: Customer Support on Apr 5, 2026, 6:41 AM
