Male Jic X Male Bspp

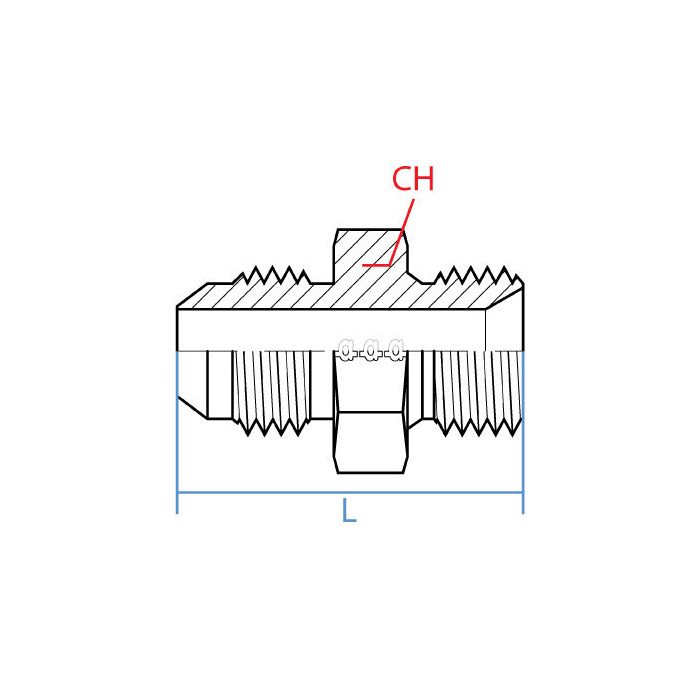

CH Width 25.5mm	L Length 39.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Jic	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9005-10-06	Product Weight 0.15 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a piece of equipment running BSPP fittings and need to tie it into a JIC line, this a straight shot or is there some kind of reducer situation going on with the sizes?

Question by: Danny F on May 9, 2025, 7:10 AM

Both ends are male, and the connection goes straight through with no reduction in the middle. One side is 5/8" JIC with a 7/8-14 UNF thread, and the other is 3/8" BSPP on a G 3/8-19 thread form. It's a direct adapter built to bridge those two thread standards in one compact piece, no extra fittings needed.

Answer by: Customer Support on May 10, 2025, 7:36 AM
