Male Jic X Male Bspp

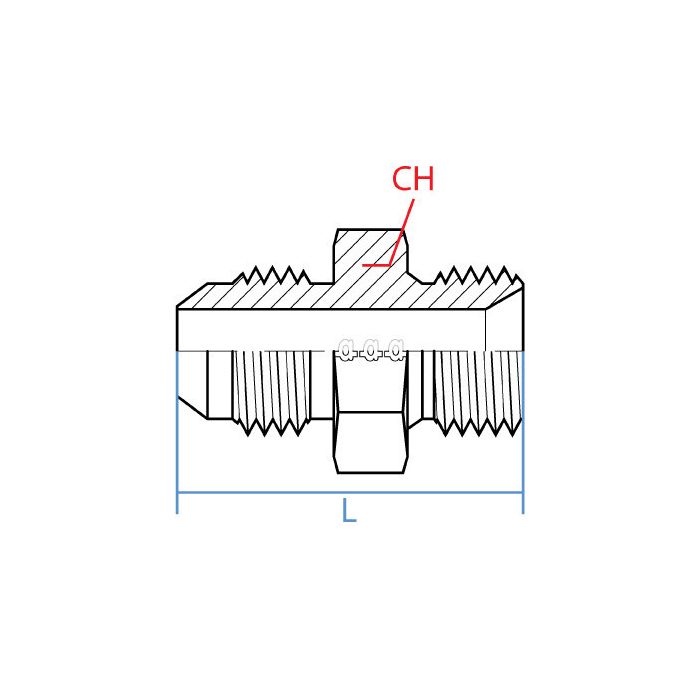

CH Width 41mm	L Length 46.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout G 1 - 11	Side 2 Gender M	Side 2 Size 1"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9005-08-16	Product Weight 0.40 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a machine running BSPP fittings on the hydraulic block and need to tie into a JIC line, this straight adapter do that job in one piece?

Question by: Larry H on May 27, 2025, 3:23 PM

That's what it's built for. One end is male JIC at 3/4-16 UNF, which covers a 1/2" JIC line, and the other end is male BSPP at G 1-11, which is your 1" BSPP port size. Steel construction, straight configuration, so you're connecting those two thread standards without any extra fittings or adapters in between.

Answer by: Customer Support on May 28, 2025, 4:30 PM
