Male Jic X Male Bspp

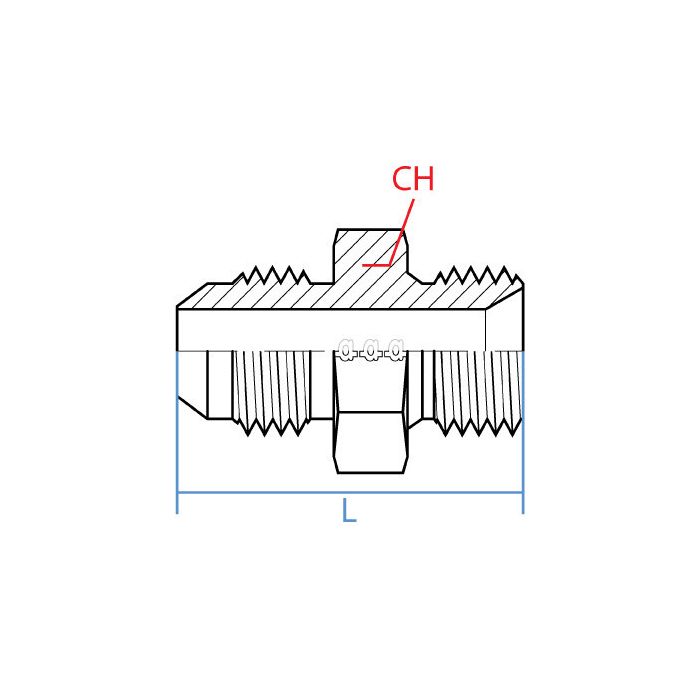

CH Width 30mm	L Length 43.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout G 5/8 - 14	Side 2 Gender M	Side 2 Size 5/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9005-08-10	Product Weight 0.20 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a machine running BSPP ports and my replacement hose ends are JIC, will this adapter work to tie them together?

Question by: Melvin E on Dec 29, 2025, 7:49 AM

That's exactly the situation this fitting handles. One end is 3/4-16 UNF male JIC at 1/2" and the other is G 5/8-14 male BSPP at 5/8", so it bridges those two thread standards in a straight inline connection. Both sides are male, so you'd need female ports or female swivel ends on your hoses to mate up on each side. Steel construction, 43.1mm overall length, 30mm across the body.

Answer by: Customer Support on Dec 30, 2025, 6:24 PM
