Male Jic X Male Bspp 9005-08-04

Specifications

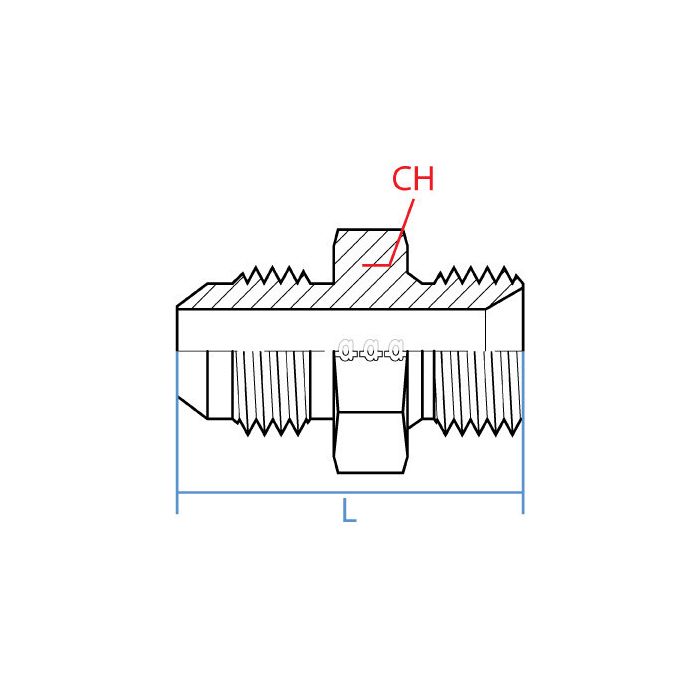

CH Width 22mm	L Length 36.4mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9005-08-04	Product Weight 0.10 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a hydraulic line running JIC fittings on one end and need to tie into a BSPP port on a piece of equipment. This a straight shot adapter or does it have some kind of angle to it?

Question by: Rhonda H on May 1, 2025, 12:46 PM

Straight through, no offset. One end is 1/2" Male JIC with a 3/4-16 UNF thread, and the other is 1/4" Male BSPP running G 1/4-19. The whole thing measures 36.4mm long, so it keeps your hydraulic connections tight and in-line without adding any awkward bends to your routing.

Answer by: Customer Support on May 3, 2025, 8:47 AM

Just wanna make sure, this here adapter, it'll go from a JIC hose to a BSPP fitting, right?

Question by: Roger M on Feb 14, 2026, 6:29 AM

That's exactly what it does. It bridges that connection between a JIC hydraulic line and a BSPP fitting.

Answer by: Customer Support on Feb 15, 2026, 7:26 PM

got a hose end that’s 3/4-16 UNF JIC male, will this adapter get me over to a G 1/4-19 BSPP port?

Question by: Cindy F on Mar 20, 2026, 11:39 AM

Function-wise it is a straight-through adapter that goes from a 1/2 inch Male JIC (3/4-16 UNF) on one side to a 1/4 inch Male BSPP (G 1/4-19) on the other, so it matches the thread callouts you listed.

Answer by: Customer Support on Mar 22, 2026, 6:06 AM
