Male Jic X Male Bspp

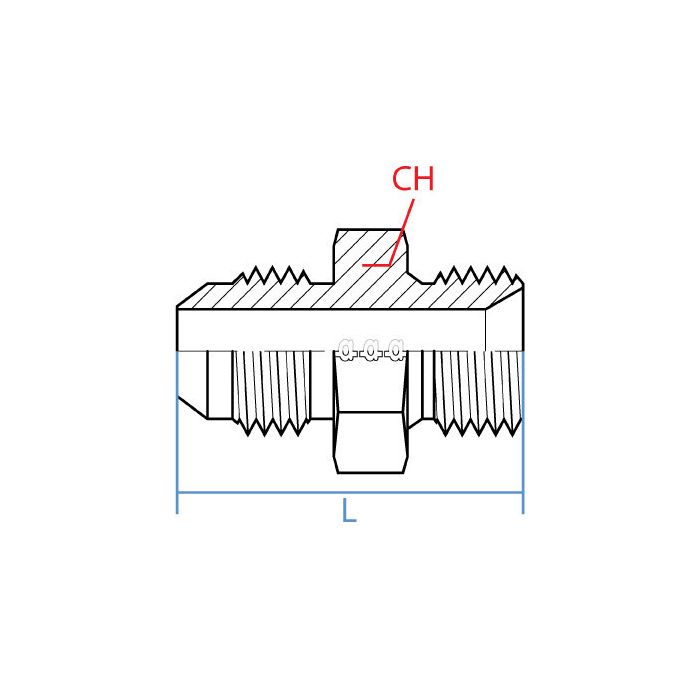

CH Width 32mm	L Length 43mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout G 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9005-06-12	Product Weight 0.25 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a line running 9/16-18 JIC on one end and need to tie into a G 3/4-14 BSPP port on a piece of equipment, this straight adapter do that job?

Question by: Sheila B on May 14, 2025, 8:01 AM

That's what this one's for. One end is 9/16-18 UNF JIC male, the other is G 3/4-14 BSPP male, so it bridges those two thread standards directly. Both sides are male, so you'll need female ports or female-threaded fittings on each end to complete the connection. Steel construction, straight configuration, no funny angles to work around.

Answer by: Customer Support on May 16, 2025, 6:10 AM
