Male Jic X Male Bspp

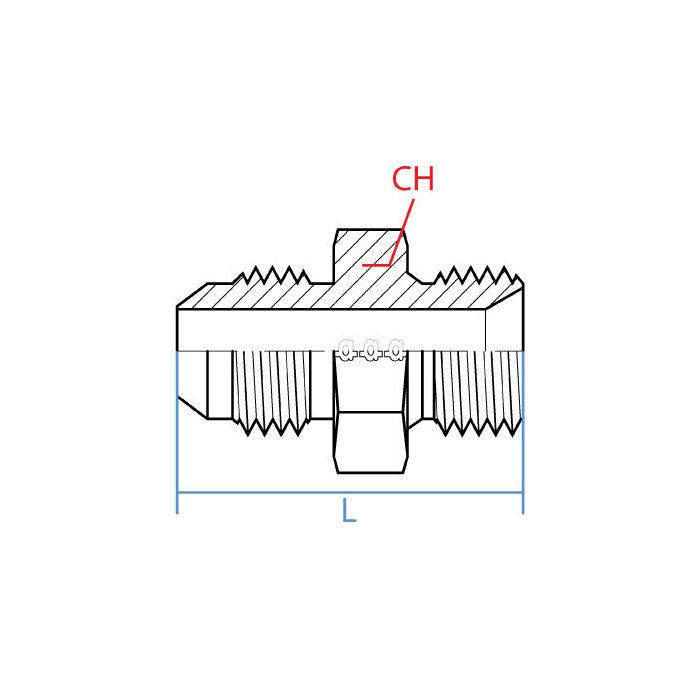

CH Width 27mm	L Length 38.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9005-06-08	Product Weight 0.15 lbs

Product Questions & Answers 1

Product Questions & Answers

got a piece of equipment with a JIC port on one end and a BSPP port on the other, this the kind of adapter that'd bridge them two together?

Question by: Shawn F on May 10, 2025, 8:40 PM

That's what this one's built for. One end is a 9/16-18 UNF male JIC thread, which corresponds to a 3/8" JIC size. The other end is a G 1/2-14 male BSPP thread, the 1/2" size. Both sides are male, so you'd be threading each end into a female port on your respective components. Straight configuration, no bends or offsets, so it works best where your ports are already lined up.

Answer by: Customer Support on May 12, 2025, 6:05 AM
