Male Jic X Male Bspp 9005-06-06

Specifications

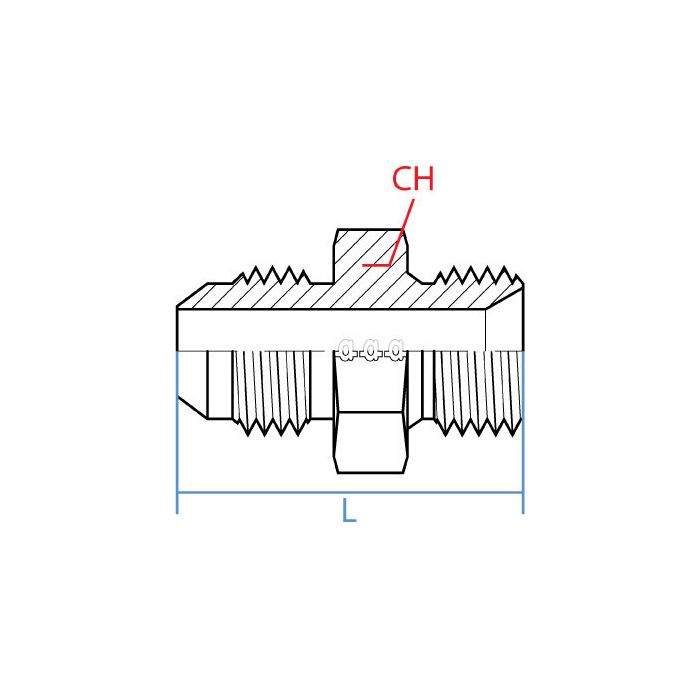

CH Width 22mm	L Length 35.2mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9005-06-06	Product Weight 0.10 lbs

Product Questions & Answers 3

Product Questions & Answers

got a piece of equipment here that's got a JIC port on one side and a BSPP port on the other, will this straight adapter actually let me connect them direct without needing any extra fittings in between?

Question by: Dwight P on Jan 19, 2026, 6:01 AM

That's what it's built for. One end is a 9/16-18 UNF JIC male thread, the other is a G 3/8-19 BSPP male thread, both 3/8" size. Straight configuration means it goes inline with no additional hardware needed to bridge those two thread standards.

Answer by: Customer Support on Jan 21, 2026, 6:09 AM

got a hose end thats 9/16-18 JIC male, and the port im going into is G 3/8-19 BSPP. is this the straight adapter for that?

Question by: Melvin P on Jul 5, 2025, 10:49 AM

For tying those two thread standards together, this adapter is the match. One side is a 9/16-18 UNF JIC male and the other side is a G 3/8-19 BSPP male, both in a straight, inline layout.

Answer by: Customer Support on Jul 6, 2025, 1:44 PM

Will this fitting hold up okay in a hydraulic system on a farm tractor?

Question by: Gary M on Apr 6, 2025, 6:56 PM

Constructed from steel, this fitting is durable enough for typical hydraulic conditions, so it should work fine on a farm tractor.

Answer by: Customer Support on Apr 8, 2025, 6:37 AM
