Male Jic X Male Bspp

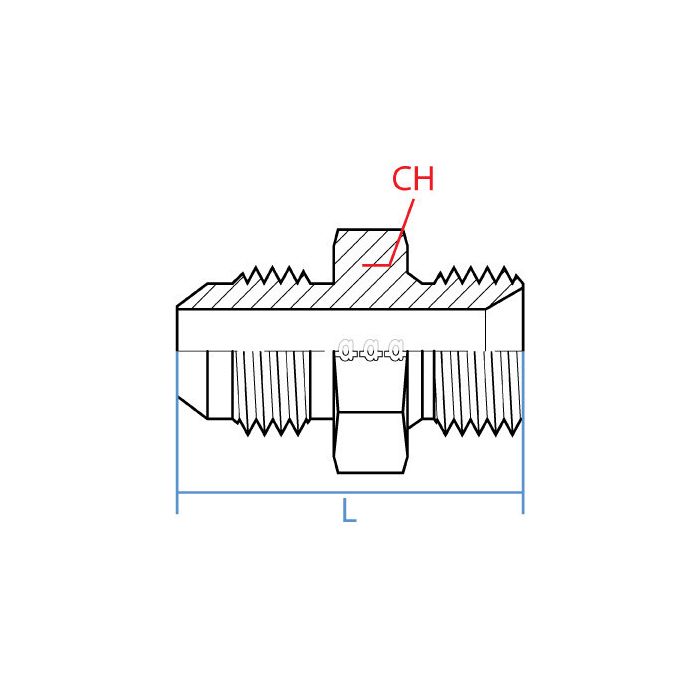

CH Width 22mm	L Length 33.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1/2 - 20 UNF	Side 1 Gender M	Side 1 Size 5/16"	Side 1 Type Jic	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9005-05-06	Product Weight 0.99 lbs

Product Questions & Answers 1

Product Questions & Answers

got a hose with a 5/16 jic male and the port i need to hit is 3/8 bspp, is this the right little adapter

Question by: Steve F on Mar 10, 2026, 3:42 PM

For tying those two thread standards together, that is exactly what this adapter is built for. One end is a 5/16 inch Male JIC with 1/2-20 UNF threads, and the other end is a 3/8 inch Male BSPP with G 3/8-19 threads.

Answer by: Customer Support on Mar 12, 2026, 6:26 AM
