Male Jic X Male Bspp

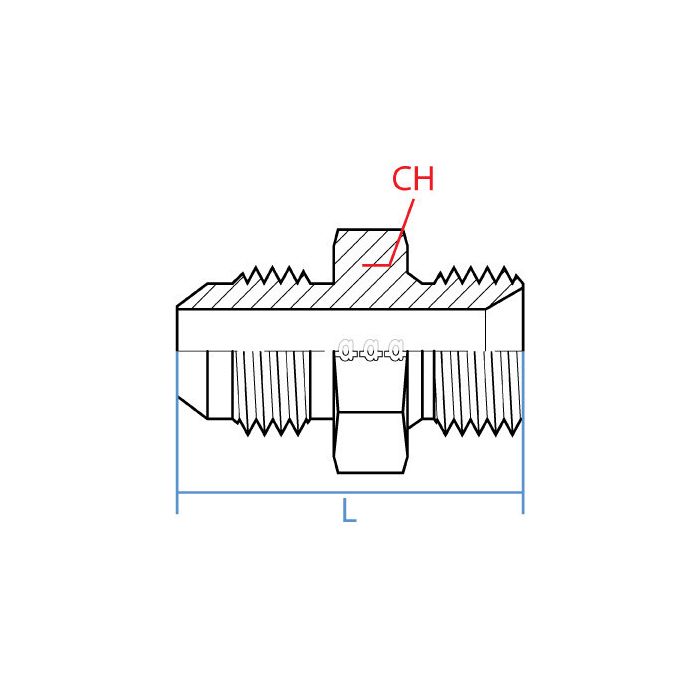

CH Width 15mm	L Length 32.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1/2 - 20 UNF	Side 1 Gender M	Side 1 Size 5/16"	Side 1 Type Jic	Side 2 Callout G 1/8 - 28	Side 2 Gender M	Side 2 Size 1/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9005-05-02	Product Weight 0.08 lbs

Product Questions & Answers 3

Product Questions & Answers

Does this adapter go from JIC on one end to BSPP on the other, or am I reading that backwards?

Question by: Judy W on Nov 11, 2025, 9:39 PM

You've got it right. The JIC side is a 5/16" male with a 1/2-20 UNF thread, and the other end is a 1/8" male BSPP with a G 1/8-28 thread. Both ends are male, so you'd be threading each side into female fittings on your existing lines or components.

Answer by: Customer Support on Nov 13, 2025, 1:29 PM

Will this here fitting hold up okay outside?

Question by: Dustin F on May 20, 2025, 8:18 AM

Constructed from steel, this adapter should offer reliable service even in demanding conditions.

Answer by: Customer Support on May 22, 2025, 6:44 AM

trying to swap an old fitting out, are the threads on this one 1/2-20 UNF on the JIC side and G 1/8-28 on the BSPP side?

Question by: Pete B on Mar 25, 2026, 10:32 AM

Thread-wise, it is a straight male JIC to male BSPP adapter with a 1/2 - 20 UNF thread on the 5/16 inch JIC male side, and a G 1/8 - 28 thread on the 1/8 inch BSPP male side.

Answer by: Customer Support on Mar 26, 2026, 2:37 PM
