Male Jic X Male Bspp

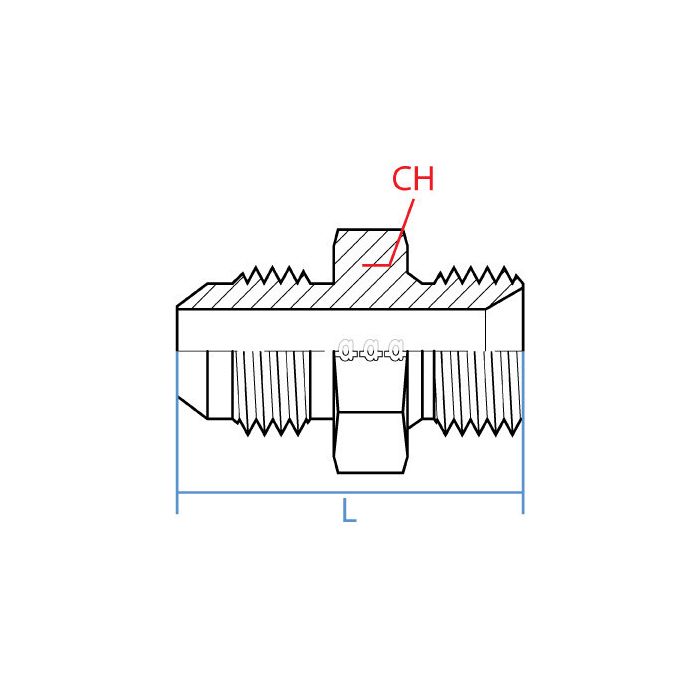

CH Width 32mm	L Length 41.3mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout G 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9005-04-12	Product Weight 0.20 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to hook a jic hose to a bspp port, is this the straight adaptor that does that?

Question by: Patty T on Apr 8, 2025, 4:53 PM

For connecting those two thread styles, it bridges a 7/16-20 UNF male JIC end to a G 3/4-14 male BSPP end in a straight adaptor body.

Answer by: Customer Support on Apr 9, 2025, 6:53 PM

Got a hydraulic line running 3/4 BSPP on one end and need to tie into a 1/4 inch JIC fitting on the other, this the right piece for that?

Question by: Duane C on Dec 9, 2025, 3:28 PM

Yeah, that's exactly what this adaptor is built for. One end is a 7/16-20 UNF male JIC, which corresponds to a 1/4 inch JIC line size, and the other end is a G 3/4-14 male BSPP. Both ends are male, so you'll need female ports or swivel nuts on both sides of wherever this gets installed. Steel construction keeps it solid under the kind of pressure and vibration most hydraulic systems throw at fittings like this.

Answer by: Customer Support on Dec 11, 2025, 7:49 AM
